Italian Sku 8762

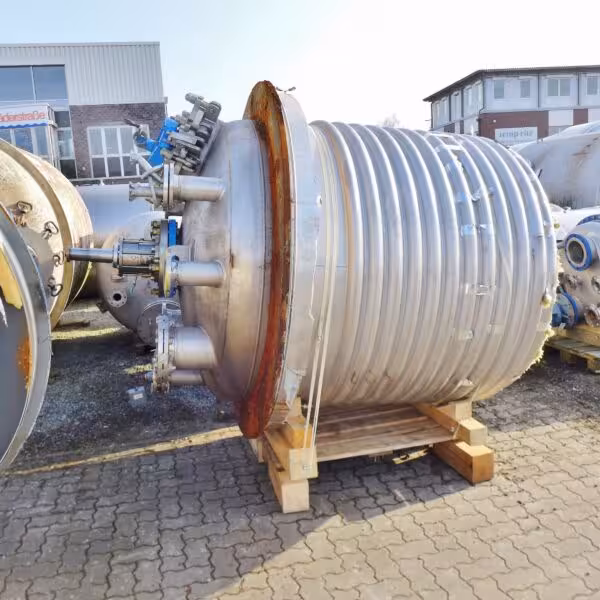

3586 liter heat-/coolable reactor with anchor stirrer, AISI316
€20,500.00
€24,395.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
HANAG
location
Bremen
condition
used
Vessel
volume
3.586 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
ring
double jacket
double jacket
available
Volume double jacket
202,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
1.600 mm
cylindrical height
1.377 mm
total height
4.250 mm
Wall thickness lower bottom
6.5 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
9.1 mm
Equipment
Technical documentation
drawing,certificate of inspection
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
remarks
Further technical documents available; Sight glass in the manhole cover is missing; support ring, Fe; Flanges partly made of Fe
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316L 1.4435
material temperatur control system
AISI 304 (V2A) 1.4306
Agitator
power
3.5 KW
output speed
6 - 40 rpm
agitator
anchor agitator
stirrer seal
mechanical seal with thermosyphon
voltage
400/690 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
centrically in the upper bottom
agitator features
Output adjustable by hand wheel
