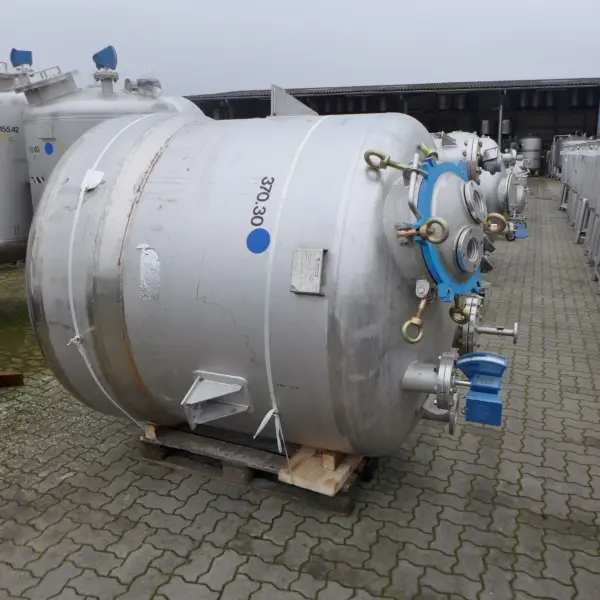

3500 liter heat-/coolable pressure vessel, AISI316
€8,900.00
incl. VAT
€10,591.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Metkon AG
location
Bremen
condition
used
Vessel
volume
3.500 liter
vacuum
1,0 bar
max. excess pressure
2,0 bar
max. allowable working temperature
200 °C
bottom
torispherical bottom
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
160,0 liter
max. allowable working overpressure (dj)
1.0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.600 mm
diameter outside
1.690 mm
cylindrical height
1.300 mm
total height
2.500 mm
Wall thickness lower bottom
5.1 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
7 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 400)
nameplate
outlet
available
remarks
3 support brackets, Aisi 304; double jacket for heating/cooling around the lower cylinder area and the lower bottom (double jacket was added later and is not shown in the vessel drawing); slight differences in the design of the two vessels, e.g. differences in the manhole covers and the outlets (1 x outlet diameter approx. 53 mm, 1 x outlet diameter approx. 210 mm; see photos); Insulation no longer available
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material double jacket
V4A/AISI 316
