Sku 6979

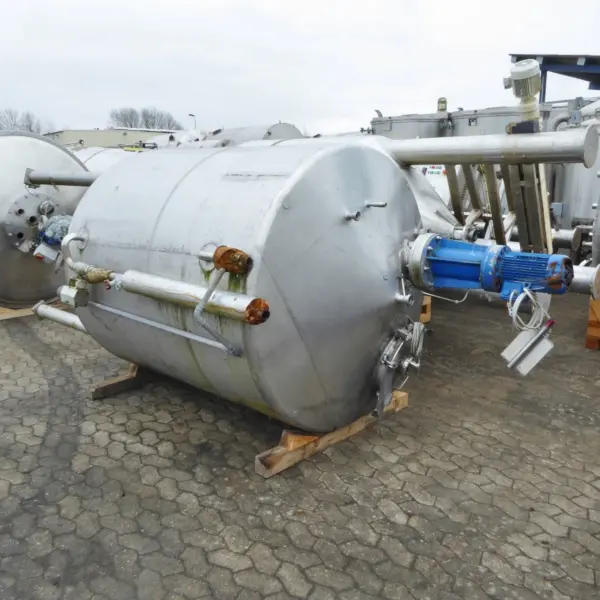

3300 liter heat-/coolable agitator vessel with conical bottom in AISI 304
€6,500.00 €7,735.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
used
Vessel
volume
3.300 liter
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.490 mm
diameter outside
1.650 mm
cylindrical height
1.650 mm
total height
4.450 mm
Equipment
manhole
in the upper bottom (Ø 400)
technical equipment
spray ball
outlet
DN65 DIN 11851
notice
dents at the insulation jacket
remarks
devices for weighing cells under the footplates (see pictures)
latest application
brewery
Material Composition
material in contact w/ medium
AISI304 1.4301
material double jacket
AISI 304 1.4301
material legs
stainless steel
Agitator
power
1.5 KW
output speed
950 rpm
agitator
propeller
voltage
220/380 Volt
agitator positioning
eccentrically in the upper bottom
agitator features
fan guard of the motor is damaged
