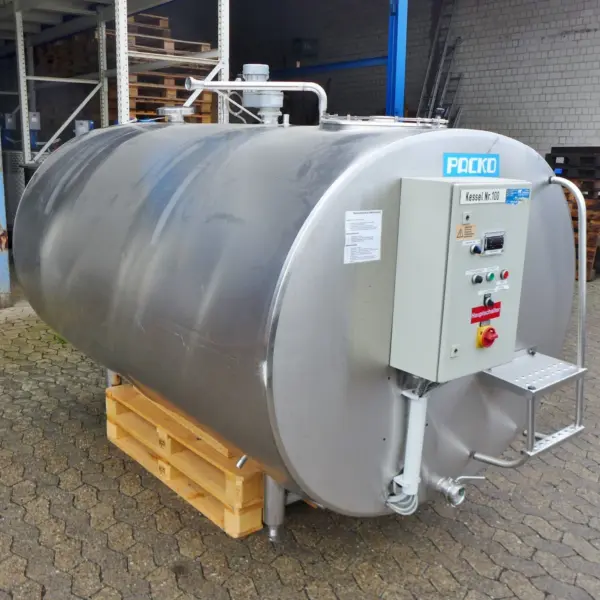

3100 liter cooling tank, Aisi 304 / Packo EM-DX 3100
€5,500.00
incl. VAT
€6,545.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
3.100 liter
construction
oval
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Insulation
insulation
available
material insulation jacket
stainless steel
Technical Characteristics
diameter outside
1.660 mm
total height
1.900 mm
total length
2.700 mm
Equipment
manhole
in the upper bottom
nameplate
technical equipment
ventilation, butterfly valve, spray ball, control cabinet (without guarantee)
outlet
DN50 DIN 11851
remarks
wall length inside: approx. 2150 mm; Manhole diameter: approx. 460 mm; butterfly valve; Knob plate (V2A) in the lower cylinder area; Iso with V2A jacket (partly welded, partly riveted); some slight detached spots & smaller dents in the insulation jacket; External cooling element included with the following approx. dimensions: L= 1220 mm/ W= 1280 mm/ H= 1100 mm
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
0,075 KW
output speed
25 rpm
agitator
blade agitator
voltage
230/400 Volt
agitator positioning
on the tank
