Italian Sku 9771

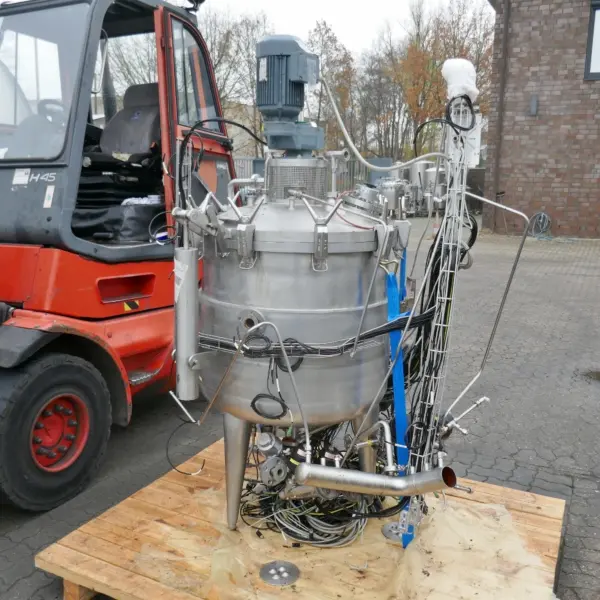

300 liter heat-/coolable pressure vessel, Aisi 316 with disc agitator
€8,500.00
€10,115.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
used
Vessel
volume
300 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
upper bottom
upper bottom removable / hinged
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
30,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
800 mm
diameter outside
840 mm
cylindrical height
590 mm
total height
2.050 mm
Equipment
Technical documentation
drawing,various documents ,certificate of inspection
nameplate
technical equipment
spray ball
outlet
15 mm
remarks
Technical documentation in Finnish
latest application
Biotechnology
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
2.2 KW
output speed
372 rpm
agitator
disk-type agitator
voltage
220/380 Volt
stream interrupter
agitator positioning
centrically in the upper bottom
