Sku B0053

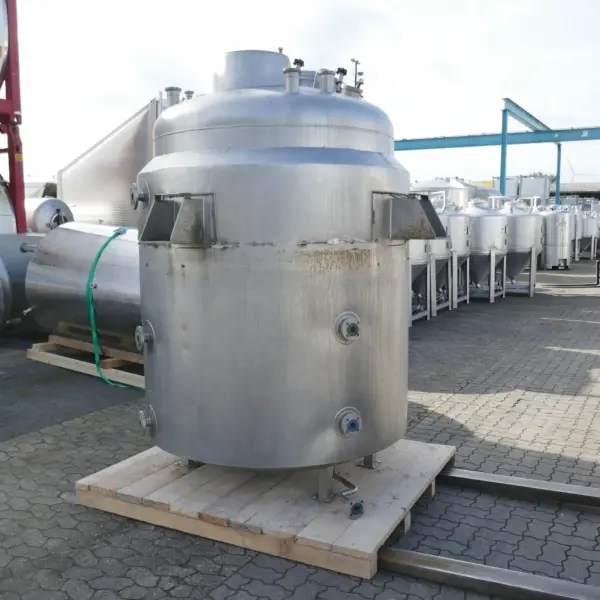

2950 liter heatable/coolable pressure vessel made of stainless steel 316 with dissolver agitator
€8,500.00 €10,115.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
H. WOLFF Apparatebau KG
location
Bremen
condition
used
Vessel
volume
2.950 liter
vacuum
0.9 bar
max. excess pressure
2.5 bar
max. allowable working temperature
138 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
148,0 liter
max. allowable working overpressure (dj)
4.0 bar
max. allowable working temperature (dj)
151 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.400 mm
diameter outside
1.600 mm
cylindrical height
1.500 mm
total height
3.500 mm
Wall thickness lower bottom
7 mm
wall thickness cylinder
10 mm
wall thickness of upper bottom
5.7 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
available
remarks
4 brackets made of stainless steel 304; stated total height estimated; according to previous operator, various technical documents (e.g. drawing) available; these have not yet been received by us
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material temperatur control system
AISI 304 (V2A) 1.4301
Agitator
manufacturer stirrer
PRG
power
15 KW
output speed
1475 rpm
agitator
dissolver
voltage
400 Volt
agitator positioning
eccentrically in the upper bottom
agitator features
Additionally 1 propeller on the agitator shaft
