Sku B0055

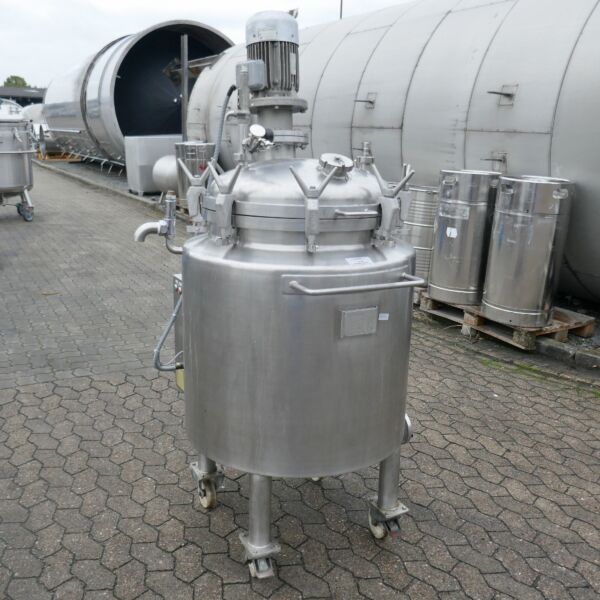

250 liter heatable/coolable pressure vessel made of stainless steel 304 with dispersing agitator
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Schwarz
location
Bremen
Vessel
volume
250 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
100 °C
upper bottom
upper bottom removable / hinged
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
90,0 liter
max. allowable working overpressure (dj)
0.5 bar
max. allowable working temperature (dj)
110 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
640 mm
diameter outside
830 mm
cylindrical height
620 mm
total height
2.000 mm
Equipment
nameplate
technical equipment
control cabinet (without guarantee)
outlet
48 mm
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
2.2 / 2.7 KW
output speed
1420 / 2870 rpm
agitator
disperser
voltage
380 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
eccentrically in the upper bottom
