9312

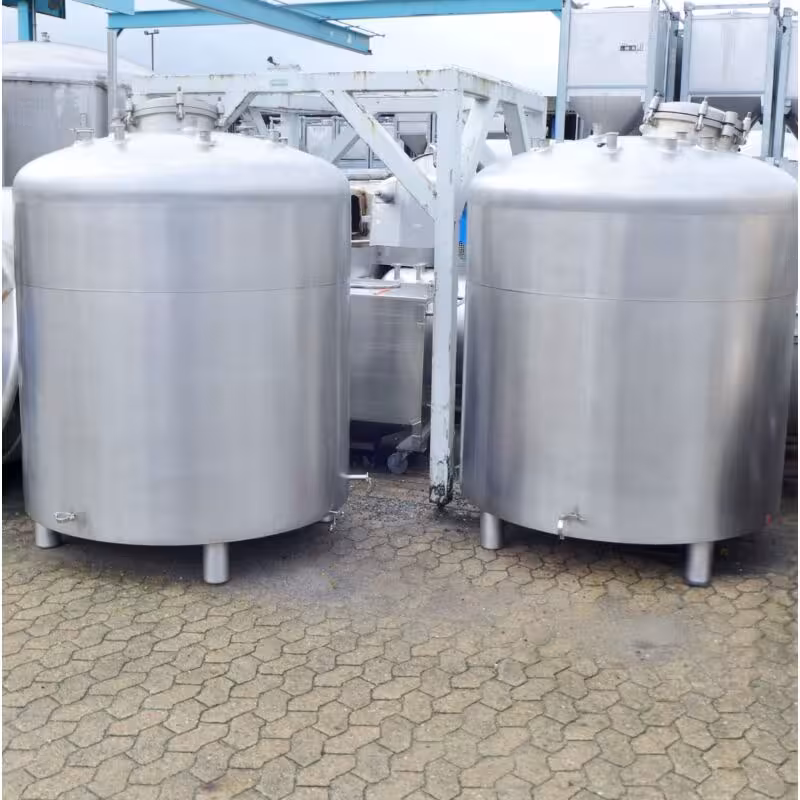

1809 liter heat-/coolable pressure tank, Aisi 316
€19,900.00
incl. VAT
€23,681.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Atec Pharmatechnik
location
Bremen
condition
used
Vessel
volume
1.809 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
150 °C
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
140,0 liter
max. allowable working overpressure (dj)
4.0 bar
max. allowable working underpressure (dj)
-1,0 bar
max. allowable working temperature (dj)
150 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.284 mm
diameter outside
1.550 mm
total height
2.200 mm
wall thickness bottom
6.4 mm
wall thickness cylinder
5 mm
year of construction
2005
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,CE label and declaration of conformity,operation manual
manhole
in the upper bottom (Ø 450)
nameplate
outlet
flange DN40
notice
some residues of previous content
remarks
One of the tanks is missing 1 leg
latest application
pharmacy
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 316 (V4A) 1.4404
material legs
stainless steel
