8496

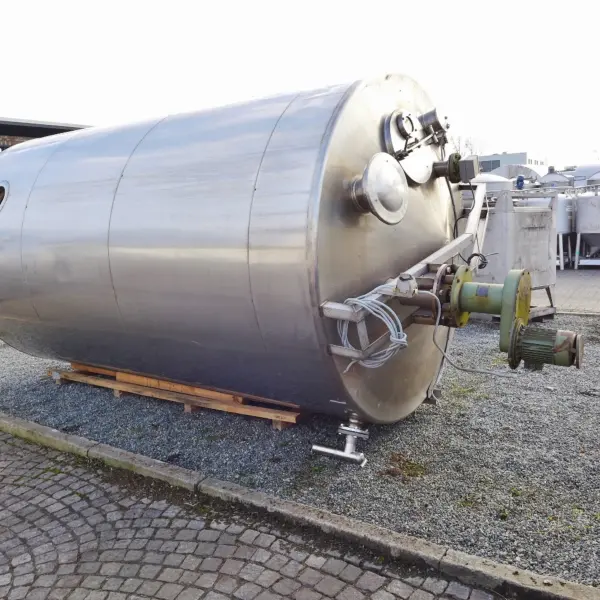

13500 liter heat-/coolable agitator tank, Aisi 304 with propeller agitator
€8,900.00
incl. VAT
€10,591.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
13.500 liter
lower bottom
overturned bottom
construction
standing
stand type
legs height adjustable
quantity legs
6 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
2.190 mm
diameter outside
2.350 mm
cylindrical height
3.700 mm
total height
5.650 mm
Equipment
manhole
in the upper bottom (Ø 450)
technical equipment
ventilation, spray ball
outlet
70 mm
notice
some residues of previous content, bump at the insulation jacket, Functionality of the double jacket not checked
remarks
Small dents in inner cylinder; insulation of the lower bottom no longer complete
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel
Agitator
output speed
690 / 1390 rpm
agitator
propeller
voltage
380 Volt
agitator positioning
eccentrically in the upper bottom
