Italian Sku 9772

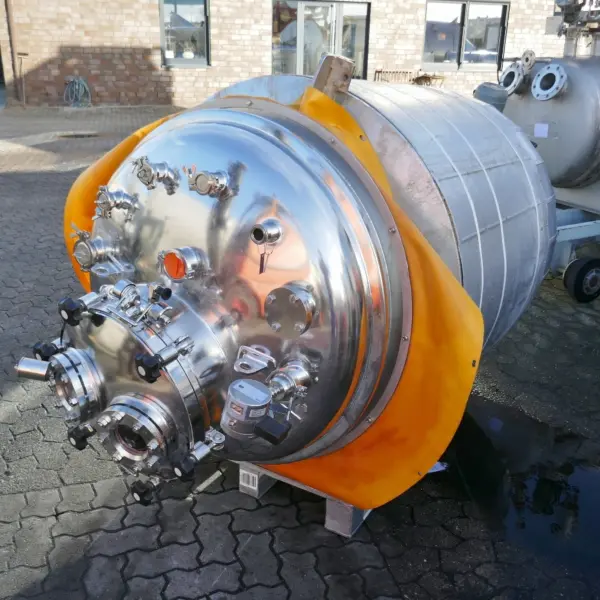

1350 Liter heat-/coolable pressure vessel, Aisi 316 mit magnetic agitator
€13,800.00
€16,422.00 incl. VAT
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
MAVAG Verfahrenstechnik AG
location
Bremen
condition
used
Vessel
volume
1.350 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
130 °C
construction
hanging
double jacket
double jacket
available
Volume double jacket
80,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
140 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
Insulation material
mineral wool
Technical Characteristics
diameter inside
1.000 mm
diameter outside
1.250 mm
cylindrical height
1.460 mm
total height
2.650 mm
wall thickness of upper bottom
4.5 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom
nameplate
outlet
available
outlet
50 mm
remarks
Various technical documents available; the previous operator had the vessels hanging in a ring with load cells that was embedded in the ground (1 ring of each is included in the delivery; see photos)
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316L 1.4435
material temperatur control system
AISI 304 (V2A) 1.4541
Agitator
manufacturer stirrer
MAVAG AG
power
0.75 KW
output speed
412 rpm
agitator
magnetic mixer
voltage
230/400 Volt
agitator positioning
lower bottom
