Italian Sku 9679

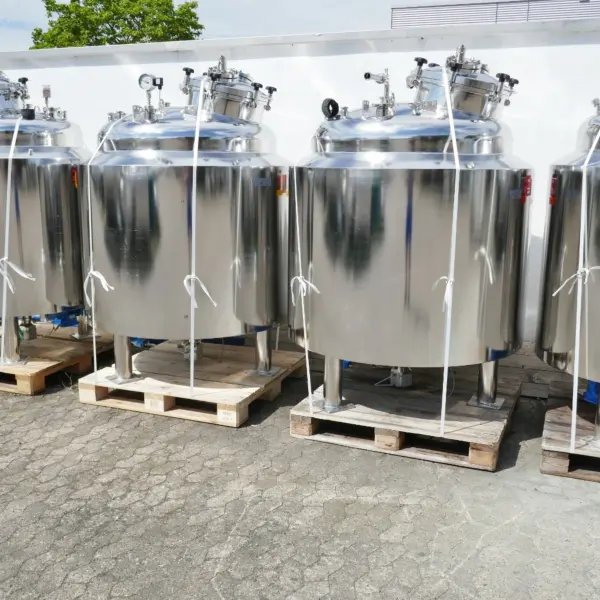

1300 Liter pharmaceutical process vessel with magnetic agitator (AISI316L)
€14,500.00
€17,255.00 incl. VAT
Price per piece, excl. VAT
4 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
MAVAG Verfahrenstechnik AG
location
Bremen
condition
used
Vessel
volume
1.300 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
130 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
80,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
140 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.200 mm
diameter outside
1.470 mm
cylindrical height
830 mm
total height
2.100 mm
Wall thickness lower bottom
7.5 mm
wall thickness cylinder
5.7 mm
wall thickness of upper bottom
4.5 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
50 mm
remarks
Various technical documents available
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316L 1.4435
material temperatur control system
AISI 304 (V2A) 1.4306
material legs
stainless steel
Agitator
manufacturer stirrer
MAVAG AG
power
1.1 KW
output speed
417 rpm
agitator
magnetic mixer
voltage
230/400 Volt
agitator positioning
lower bottom
agitator features
Various technical documents on magnetic stirrers
