Quotation Request

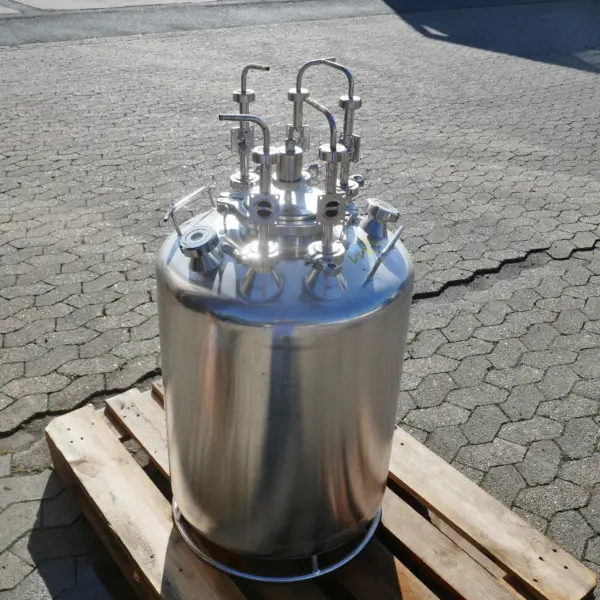

130 liter pressure vessel made of stainless steel 316 (incl. technical drawing)
Item no. 6311

130 liter pressure vessel made of stainless steel 316 (incl. technical drawing)

€2,150.00 €2,558.50  incl. VAT
Price per piece, excl. VAT
4 pieces on stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

Documentation
General Information
location
Bremen
condition
used
Vessel
volume
130 liter
vacuum
1,00 bar
max. allowable working pressure
3,00 bar
max. allowable working temperature
200 °C
construction
standing
Technical Characteristics
diameter inside
508 mm
cylindrical height
488 mm
total height
1.000 mm
wall thickness of heads
2.5 mm
wall thickness cylinder
2.5 mm
Equipment
Technical documentation
drawing
manhole
handhole
nameplate
outlet
non-existent
remarks
Diameter of hand hole approx. 150 mm; dip tubes inside the tanks; some minor dents
Material Composition
material in contact w/ medium
AISI 316 1.4401 / 1.4404
