Sku 9915

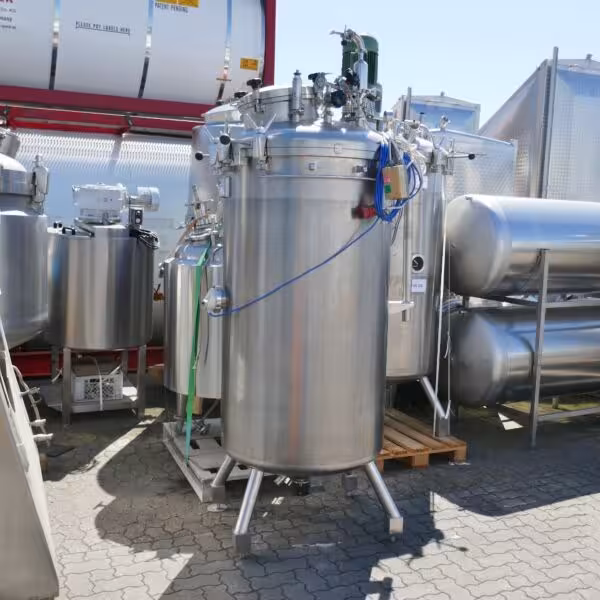

1100 liter pharmacy pressure tank, Aisi 316 with propeller agitator
€4,100.00 €4,879.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
SAV Leonhard Schliersmaier
location
Bremen
condition
used
Vessel
volume
1.100 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
143 °C
upper bottom
upper bottom removable / hinged
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
Technical Characteristics
diameter inside
890 mm
cylindrical height
1.480 mm
total height
2.680 mm
wall thickness bottom
4.3 mm
wall thickness cylinder
4.7 mm
Equipment
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
spray ball
outlet
38 mm
notice
some residues of previous content
remarks
Clamp screws on the upper bottom are partially missing
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material legs
stainless steel
Agitator
manufacturer stirrer
RVT Systeme
power
0.75 KW
output speed
690 rpm
agitator
propeller
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
