Item no. B0239

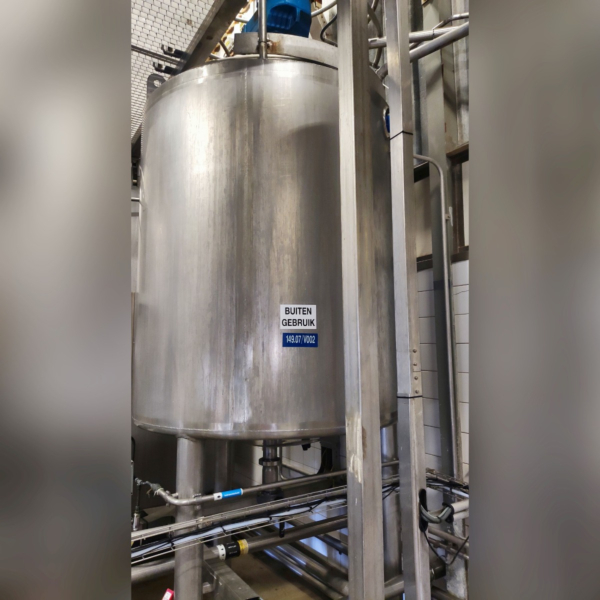

1,500-liter insulated storage tank made of stainless steel AISI 904L 1.4539
€7,500.00 €8,925.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
manufacturer
location
Off-site warehouse in the Netherlands (starting around calendar week 32 in Bremen)
condition
used
Vessel
volume
1.500 liter
max. allowable working temperature
60 °C
lower bottom
cone shaped bottom
upper bottom
torispherical bottom
construction
standing
support type
legs
quantity legs
3 pieces
Insulation
insulation
available
insulation jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
diameter inside
1.300 mm
cylindrical height
1.500 mm
total height
3.190 mm
Wall thickness lower bottom
3 mm
Equipment
Technical documentation
drawing
manhole
in the cylinder
nameplate
technical equipment
ventilation, lifting lugs
outlet
DN80 DIN 11851
remarks
Manhole diameter: approx. 530 x 430 mm; dimensions as shown in the drawing
latest application
Food
Material Composition
material in contact w/ medium
AISI 904L 1.4539
