Italian Sku 9785

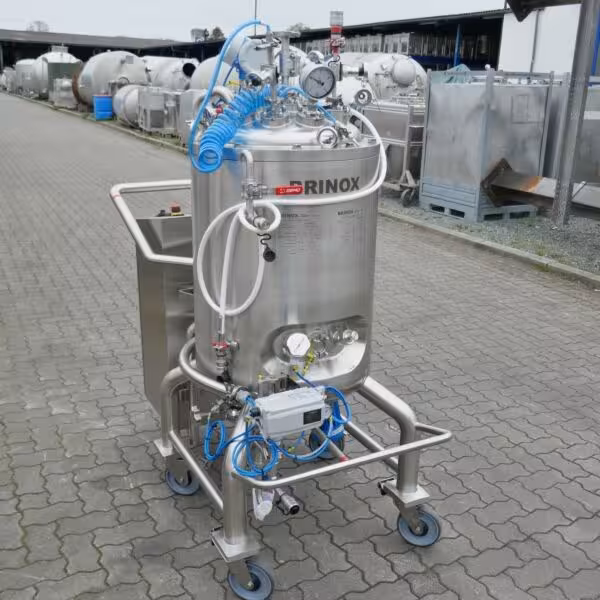

Unused 165 liter mobile heat-/coolable pharma process vessel, Aisi 316 with magnetic agitator
€24,500.00
€29,155.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Brinox
location
Bremen
condition
unused
Vessel
volume
165 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
80 °C
upper bottom
screwed cover
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
12,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
mineral wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
490 mm
diameter outside
615 mm
total height
1.820 mm
wall thickness bottom
5 mm
wall thickness cylinder
5 mm
year of construction
2021
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,various documents ,certificate of inspection,CE label and declaration of conformity
nameplate
technical equipment
spray ball, control cabinet (without guarantee)
outlet
22 mm
remarks
Vessel was only used for validation and never went into service
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
Zeta GmbH
power
0.09 KW
output speed
125 - 1000 rpm
agitator
magnetic mixer
voltage
230/400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
lower bottom
