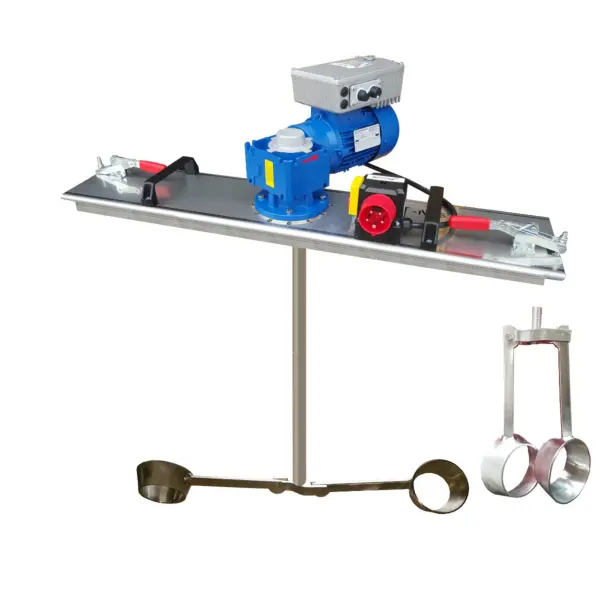

IBC agitator / worm-gear container mixer with foldable cup stirrer at variable speed
€3,390.00
€4,034.10 incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST
ON REQUEST
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
Bremen
condition
brand new
Other
- Motor and gear in latest aluminium technology, made by Getriebebau NORD
- Solid plug-in agitator shaft mounted in the hollow shaft gear unit
- 4-blade-folding stirrer Ø340mm (8mm strength)
- Stirrer blades can be removed without any tools for easy cleaning, no screws in the container
- Output: 0,75 kw
- Engine speed: 0-190 rpm (variable)
- Voltage: 3PH 400V 50Hz IP55 IE2
- Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-190 rpm
- Material in contact with medium: AISI 316
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks, 2 carrying handles and two holes for forklift forks
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
- Folding stirrer insertable through container opening Ø140mm
Agitators
Technical documentation
drawing,assembly instruction
agitator
cup stirrer
output speed
0-190 rpm
voltage
400 Volt
power
0,75 KW
material in contact w/ medium
AISI316Ti 1.4571
nameplate
max. viscosity
3.000 mPas
shaft diameter
28 mm
blade diameter
600 mm
- Motor and gear in latest aluminium technology, made by Getriebebau NORD
- Solid plug-in agitator shaft mounted in the hollow shaft gear unit
- 4-blade-folding stirrer Ø340mm (8mm strength)
- Stirrer blades can be removed without any tools for easy cleaning, no screws in the container
- Output: 0,75 kw
- Engine speed: 0-190 rpm (variable)
- Voltage: 3PH 400V 50Hz IP55 IE2
- Compact frequency inverter IP 55 NORD: release switch and potentiometer for stepless engine speed regulation (0-50 Hz) 0-190 rpm
- Material in contact with medium: AISI 316
- Stainless steel traverse AISI 304 (1.4301), 4mm strength, with 2 tenterhooks, 4 carrying handles and two holes for forklift forks
- Suitable for IBC-1000 liter
- CEE-plug switch on the traverse with no-voltage release and phase inverter
- Folding stirrer insertable through container opening Ø140mm
