Sku B0034

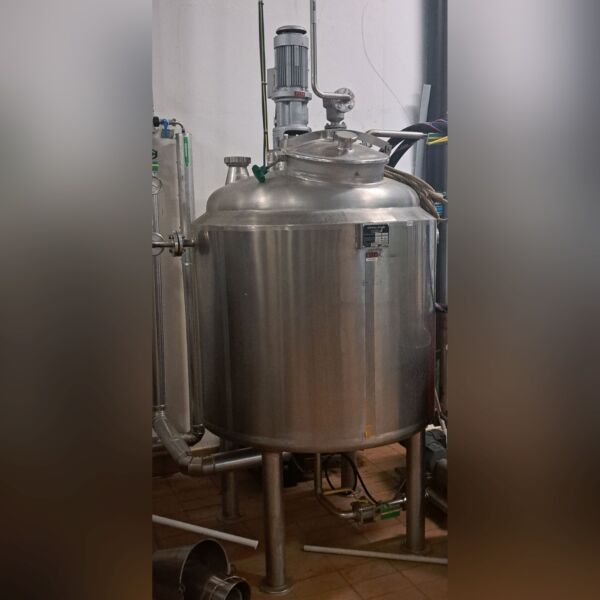

630 liter heat-/coolable mixingtank, Aisi316 with propeller agitator
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Ahrens & Bode
location
Bremen (available from week 37)
condition
used
Vessel
volume
630 liter
max. allowable working temperature
148 °C
bottom
torispherical bottom
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
46,0 liter
max. allowable working overpressure (dj)
3.5 bar
max. allowable working temperature (dj)
148 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
50 mm
Technical Characteristics
diameter inside
1.000 mm
cylindrical height
780 mm
Equipment
Technical documentation
drawing,various documents
manhole
in the upper bottom (Ø 430)
nameplate
outlet
DN40 DIN 11851
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
Agitator
agitator
propeller
agitator positioning
eccentrically in the upper bottom
