Sku B0038

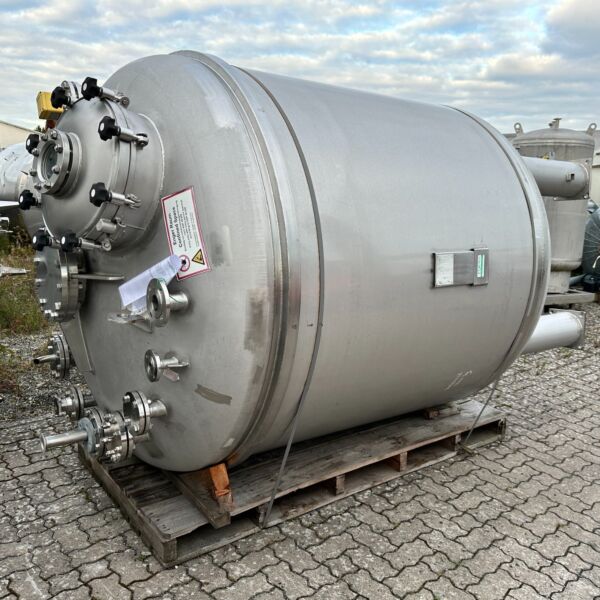

5380 liter standing vakuum pressure tank, Aisi316
Price on request
Price per piece, excl. VAT
2 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Hinke
location
Bremen
condition
used
Vessel
volume
5.380 liter
vacuum
1,0 bar
max. excess pressure
3.5 bar
max. allowable working temperature
200 °C
specific weight of the medium
1.3 (to/m³)
bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
1.794 mm
cylindrical height
1.600 mm
total height
3.140 mm
Wall thickness lower bottom
8 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
6 mm
Equipment
Technical documentation
drawing,various documents ,CE label and declaration of conformity
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
flange
outlet
38 mm
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
Agitator
agitator
agitator flange
agitator positioning
centrically in the upper bottom
