Sku 8852

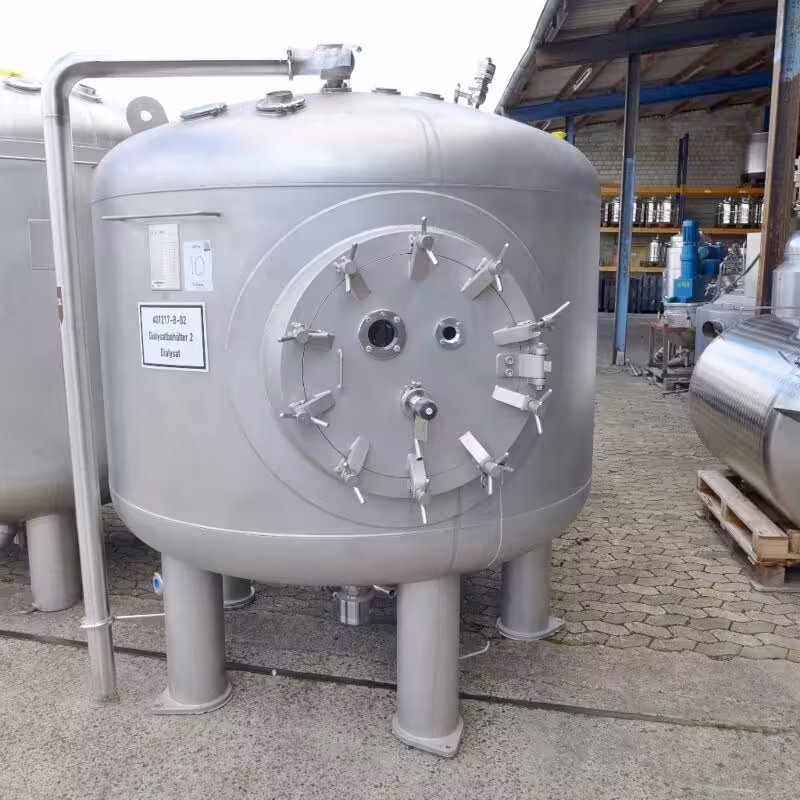

5050 liter aseptic pharma pressure tank, Aisi 316 (built 2016)
€13,500.00
€16,065.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
Möschle
location
Bremen
condition
used
Vessel
volume
5.050 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
135 °C
construction
standing
stand type
legs
quantity legs
5 Piece
Technical Characteristics
diameter inside
2.000 mm
cylindrical height
1.050 mm
total height
2.600 mm
wall thickness bottom
5.8 mm
wall thickness cylinder
6 mm
year of construction
2016
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents,statics,CE label and declaration of conformity,operation manual
manhole
in the cylinder
nameplate
technical equipment
spray ball, crane eyes
outlet
28 mm
remarks
Manhole DN 600; Parts of the blanking plugs may be present
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material legs
stainless steel
