Sku K0176

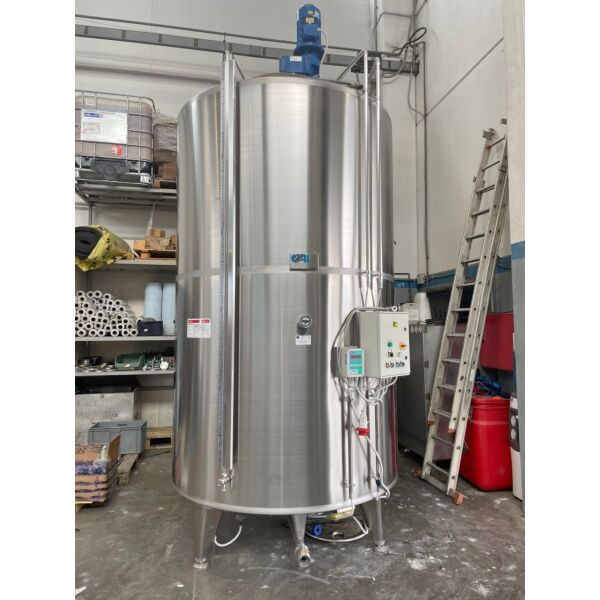

5000 liter heatable/coolable, insulated stainless steel 316 agitator tank with inclined blade agitator
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
location
External warehouse Italy
Vessel
volume
5.000 liter
max. allowable working temperature
85 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.580 mm
diameter outside
1.780 mm
total height
4.170 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom
outlet
available
remarks
Manhole diameter approx. 520 mm; specified total height according to drawing
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
4 KW
output speed
157 rpm
agitator
cross blade stirrer
agitator positioning
eccentrically in the upper bottom
