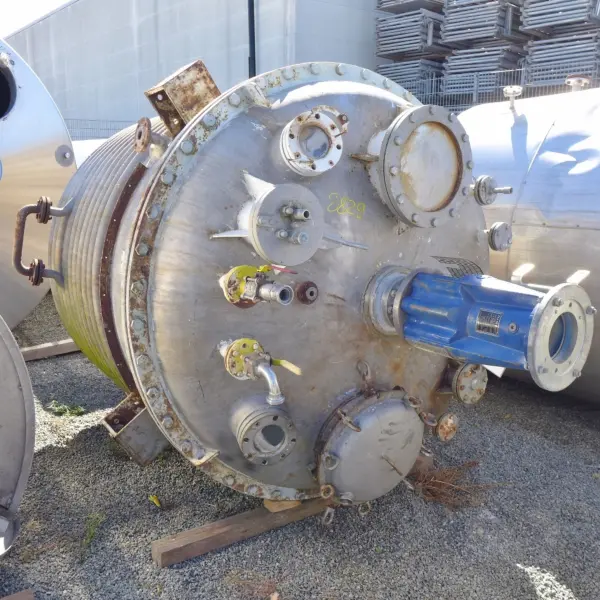

5000 liter heat-/coolable pressure tank, Aisi 316 with blades agitator
€14,000.00
incl. VAT
€16,660.00
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
Stöcklin
location
Bremen
condition
used
Vessel
volume
5.000 liter
max. excess pressure
3.2 bar
upper bottom
upper bottom removable / hinged
construction
hanging
stand type
bracket
double jacket
double jacket
available
max. allowable working overpressure (dj)
16.0 bar
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
1.880 mm
cylindrical height
1.580 mm
total height
3.550 mm
Equipment
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
ball valve
outlet
DN40 DIN 11851
notice
some residues of previous content, motor-/gear is missing
remarks
Upper bottom, Aisi 304 (1.4301); 4 support brackets, Fe; Slight corrosion of material inside the tank
latest application
Chemistry
Material Composition
material upper bottom
AISI304 (V2A) 1.4301
material in contact w/ medium
AISI316 (V4A) 1.4429
material temperatur control system
AISI 304 (V2A) 1.4301
material flanges
mild steel
Agitator
manufacturer stirrer
Fluid
agitator
blade agitator
agitator positioning
centrically in the upper bottom
