9021

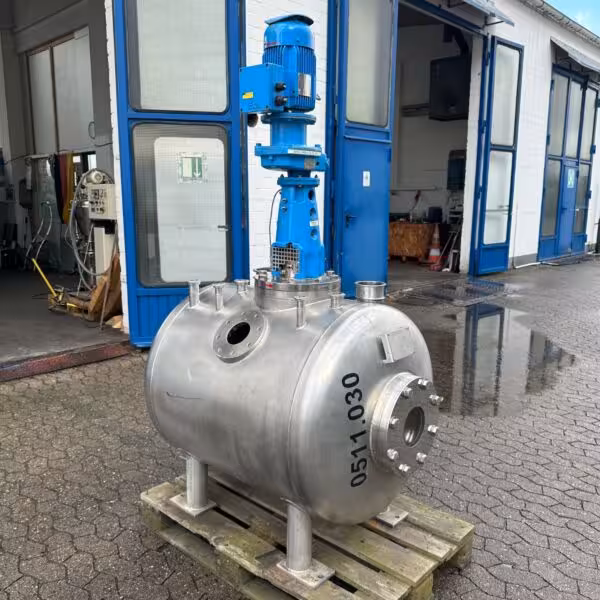

400 liter pressure tank, Aisi 316 with inclined blade agitator
€5,500.00
incl. VAT
€6,545.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
400 liter
vacuum
1,0 bar
max. excess pressure
6,0 bar
max. allowable working temperature
150 °C
construction
horizontal
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
800 mm
cylindrical length
775 mm
total height
1.950 mm
total length
1.250 mm
wall thickness bottom
4 mm
wall thickness cylinder
4 mm
year of construction
2012
Equipment
Technical documentation
drawing,various documents ,certificate of inspection,CE label and declaration of conformity,operation manual
nameplate
outlet
50 mm
remarks
Tank casing cut open; 1 sight glass missing in the cylinder (see photos)
latest application
Pharmaceutical Chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material legs
stainless steel
Agitator
power
1.5 KW
output speed
762 rpm
agitator
cross blade stirrer
stirrer seal
mechanical seal without thermosyphon
voltage
220/380 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
on the tank
agitator features
Technical documentation for the agitator available
