Sku 8756

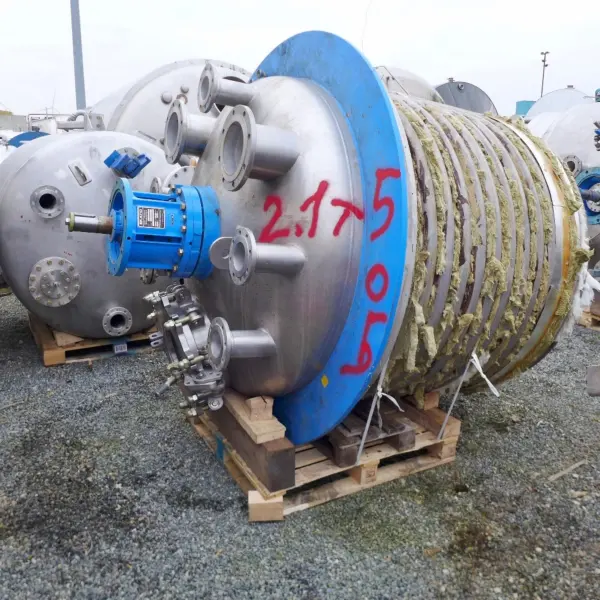

3690 liter heat-/coolable reactor vessel with anchor stirrer, AISI316
€20,500.00
€24,395.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Documentation
General Information
Manufacturer
HANAG
location
Bremen
condition
used
Vessel
volume
3.690 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
ring
double jacket
double jacket
available
Volume double jacket
145,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
1.600 mm
cylindrical height
1.380 mm
total height
4.350 mm
Wall thickness lower bottom
6.5 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
7.9 mm
Equipment
Technical documentation
drawing,various documents ,certificate of inspection
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
crane eyes
outlet
130 mm
remarks
Manhole cover incomplete (among other things, the sight glass is missing, see photos); Support ring made of Fe
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316L 1.4435
material temperatur control system
AISI 304 (V2A) 1.4306
Agitator
manufacturer stirrer
Ekato
power
11 KW
output speed
6 - 32 rpm
agitator
anchor agitator
stirrer seal
mechanical seal with thermosyphon
voltage
400 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
centrically in the upper bottom
agitator features
The previous operator controlled the agitator drive by an external speed controller (no longer available); Various technical documents for the agitator available
