Sku 9733

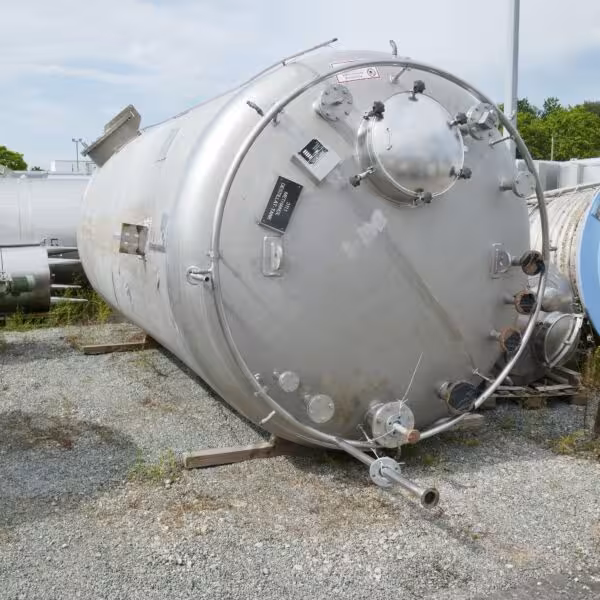

28100 liter storage tank, Aisi 316
€14,900.00 €17,731.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
BERTSCH
location
External stock
condition
used
Vessel
volume
28.100 liter
max. excess pressure
1,0 bar
max. allowable working temperature
100 °C
bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
2.600 mm
cylindrical height
4.594 mm
total height
6.800 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
5 mm
Equipment
Technical documentation
drawing,various documents
manhole
in the cylinder, in the upper bottom (Ø 600)
nameplate
technical equipment
crane eyes
outlet
flange DN100
remarks
Cylinder manhole diameter: approx. 600 mm; tank with dents in the cylinder (vacuum damage; see photos)
latest application
Chemie
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
