Sku 8109

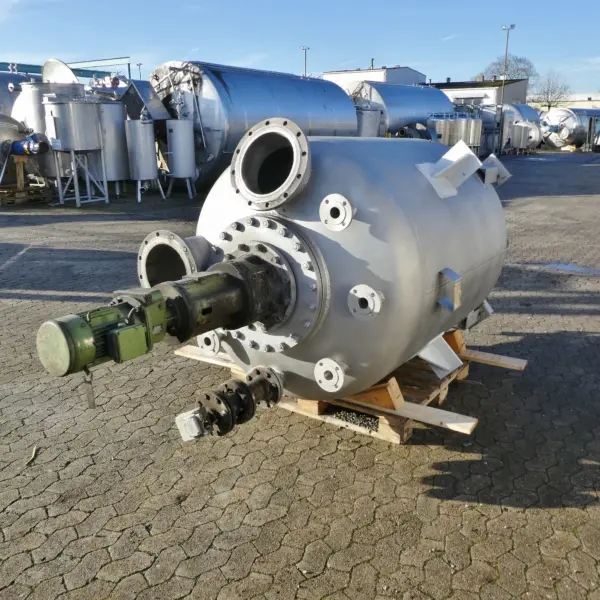

2765 liter heat-/coolable pressure tank, Aisi 316
€5,950.00
€7,080.50 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
A.C. KOSIK
location
Bremen
condition
used
Vessel
volume
2.765 liter
vacuum
1,0 bar
max. excess pressure
6,0 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
42,0 liter
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
150 °C
temperature control bottom (dj)
double jacket
Technical Characteristics
diameter inside
1.400 mm
cylindrical height
1.390 mm
total height
3.350 mm
Wall thickness lower bottom
7 mm
wall thickness cylinder
7 mm
wall thickness of upper bottom
9 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
nameplate
outlet
flange DN80
notice
some residues of previous content
remarks
Tanks blasted and primed on the outside; Double jacket screwed to the lower bottom (see photos); 4 support brackets made of Fe; external surface damaged in places (possibly in need of repair)
latest application
Chemistry
Material Composition
material in contact w/ medium
AISI316Ti 1.4571
material double jacket
AISI 304 1.4541
Agitator
manufacturer stirrer
Ekato
power
2.6 KW
output speed
167 rpm
agitator
propeller
voltage
500 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
stream interrupter
agitator positioning
centrically in the upper bottom
