9395

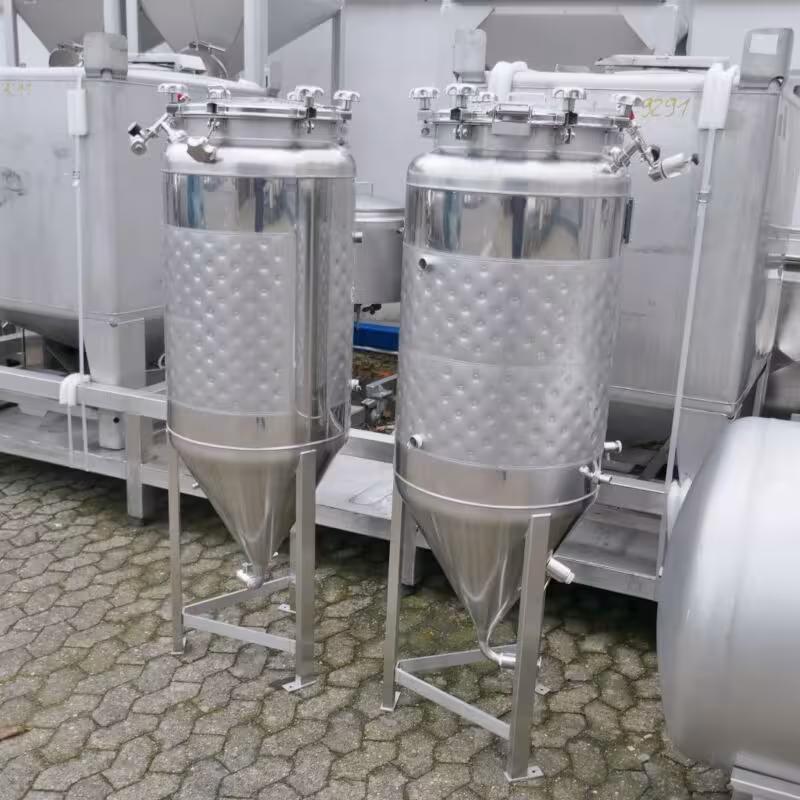

240 liter heat-/coolable pressure tank, Aisi 304
€3,500.00
incl. VAT
€4,165.00
Price per piece, excl. VAT
2 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
Speidel
location
Bremen
condition
used
Vessel
volume
240 liter
max. excess pressure
1.2 bar
max. allowable working temperature
50 °C
specific weight of the medium
1.1 (to/m³)
lower bottom
conical bottom
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
1,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
50 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
550 mm
cylindrical height
740 mm
total height
1.750 mm
year of construction
2022
Equipment
Technical documentation
drawing,various documents
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
ball valve
outlet
25 mm
remarks
Thermoplate, Aisi 304 around most of the cylinder; cone height appr. 500 mm; 1 tank with metallic discoloration in the outlet area inside (see photos)
latest application
Brewery
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
