9315

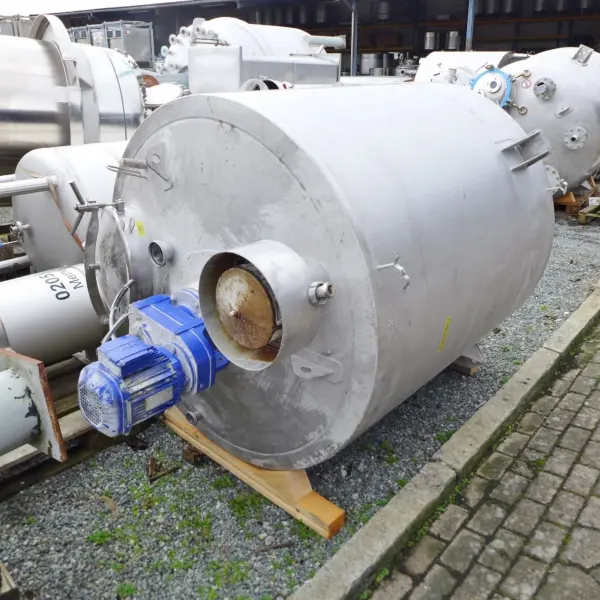

2210 liter insulated agitator tank, Aisi 304 with blades agitator
€4,750.00
incl. VAT
€5,652.50
Price per piece, excl. VAT
2 pieces on stock
General Information
Hersteller
Rieger
location
Bremen
condition
used
Vessel
volume
2.210 liter
max. allowable working temperature
90 °C
lower bottom
cone shaped bottom
construction
hanging
stand type
bracket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.290 mm
diameter outside
1.420 mm
cylindrical height
1.450 mm
total height
2.550 mm
Equipment
manhole
in the upper bottom
nameplate
technical equipment
ventilation, crane eyes
outlet
flange DN65
remarks
4 support brackets, Aisi 304; Manhole diameter approx. 420 mm; Insulation around the cylinder only; The previous operator had the two tanks in a stainless steel frame; This frame is still available and can be included upon request for an additional charge (see photos)
latest application
Food industry
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
Agitator
manufacturer stirrer
PRG
power
1.5 KW
output speed
39 rpm
agitator
blade agitator
voltage
220/380 Volt
agitator positioning
eccentrically in the upper bottom
agitator features
One of the two agitators is not screwed on and is lying loose in the tank (see photos)
