9026

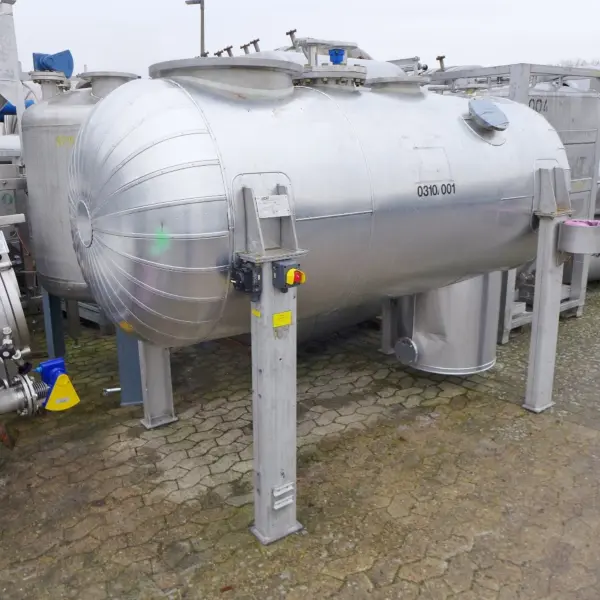

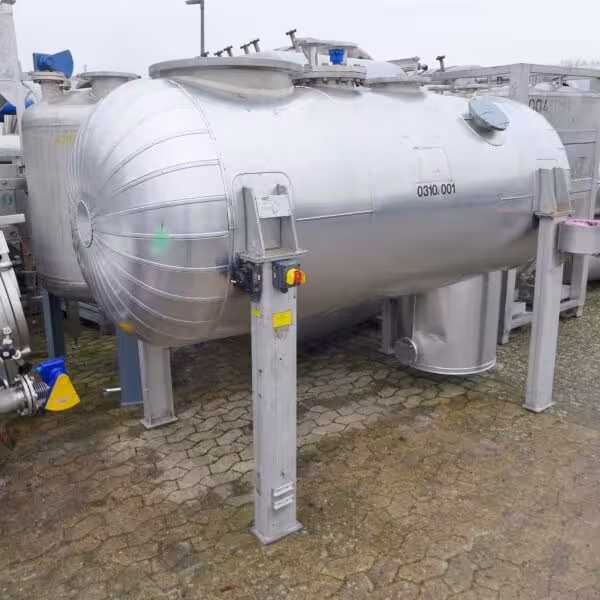

2200 liter insulated pressure tank, Aisi 316
€6,800.00
incl. VAT
€8,092.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
location
Bremen
condition
used
Vessel
volume
2.200 liter
vacuum
1,0 bar
max. excess pressure
2,0 bar
max. allowable working temperature
95 °C
construction
horizontal
stand type
legs
quantity legs
4 Piece
Insulation
insulation
available
insulating jacket
riveted
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.000 mm
diameter outside
1.160 mm
total height
2.200 mm
total length
3.100 mm
Equipment
Technical documentation
drawing
manhole
on the tank
nameplate
outlet
flange DN65
notice
bump at the insulation jacket, manhole cover is missing
remarks
4 feet, stainless steel, screwed to 4 support brackets, stainless steel; Manhole DN 600; slight metallic discoloration inside
latest application
Pharmaceutical Chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
material legs
stainless steel
