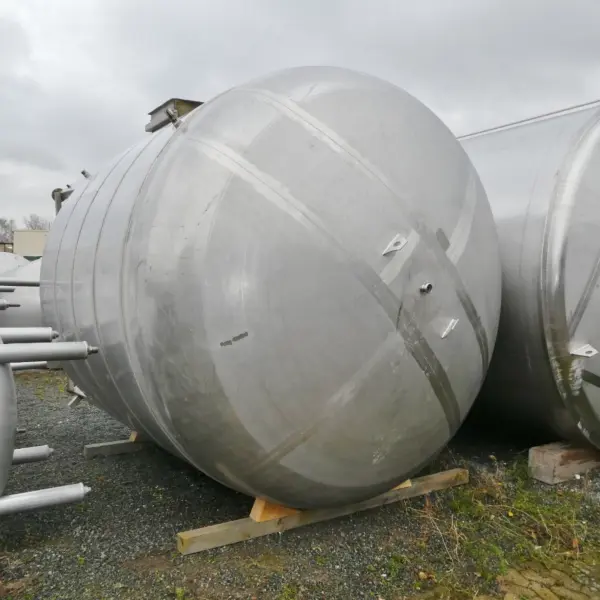

21400 liter heat-/coolable pressure tank, Aisi 304
€19,900.00
incl. VAT
€23,681.00
Price per piece, excl. VAT
1 on Stock
Unterlagen vorhanden
General Information
Hersteller
Gross Apparatebau
location
Bremen
condition
used
Vessel
volume
21.400 liter
max. excess pressure
4.5 bar
max. allowable working temperature
20 °C
construction
standing
stand type
legs
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
205,0 liter
max. allowable working overpressure (dj)
1.5 bar
max. allowable working temperature (dj)
20 °C
Temperature control cylinder (dj)
double jacket
Technical Characteristics
diameter inside
2.888 mm
diameter outside
2.930 mm
cylindrical height
2.300 mm
total width
4.150 mm
Wall thickness lower bottom
5.7 mm
wall thickness cylinder
6.0 mm
wall thickness of upper bottom
5.4 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the cylinder (appr. 350 x 450 mm)
nameplate
technical equipment
butterfly valve, spray ball, crane eyes
outlet
DN50 DIN 11851
latest application
Beverage industry
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
