Sku 9195

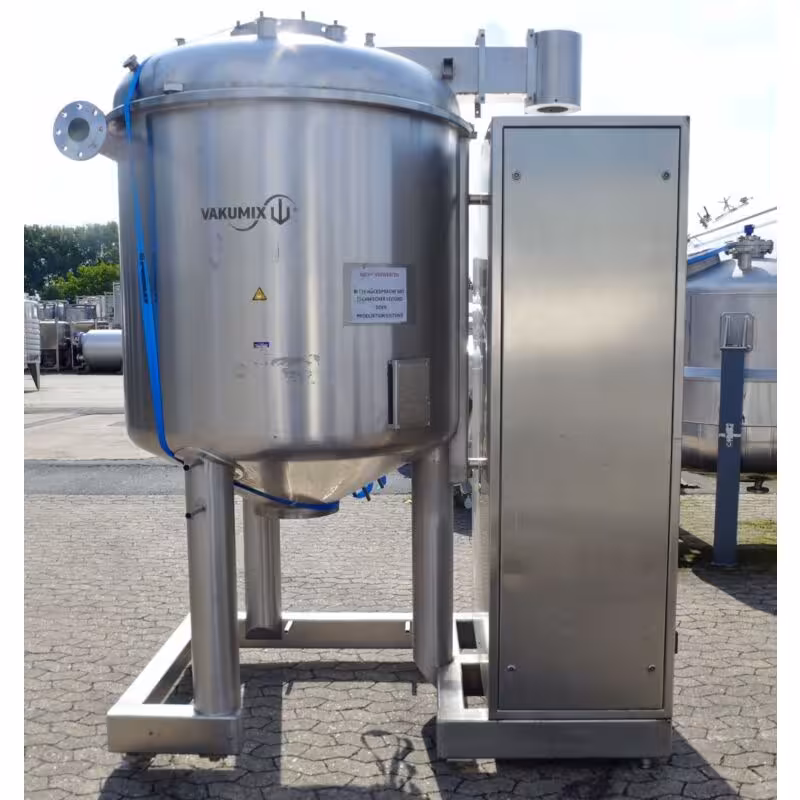

1980 liter vacuum tank, Aisi 316
€8,500.00
€10,115.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
VAKUMIX
location
Bremen
condition
used
Vessel
volume
1.980 liter
vacuum
1,0 bar
max. allowable working temperature
99 °C
lower bottom
cone shaped bottom
upper bottom
upper bottom removable / hinged
construction
standing
stand type
cage
Technical Characteristics
diameter inside
1.300 mm
cylindrical height
1.095 mm
total height
2.760 mm
Wall thickness lower bottom
8 mm
wall thickness cylinder
8 mm
wall thickness of upper bottom
20 mm
year of construction
2009
Equipment
Technical documentation
drawing
nameplate
outlet
flange
outlet
280 mm
notice
some residues of previous content
remarks
Height-adjustable frame made of V2A; various connections in the upper bottom; upper bottom can be moved with a lifting/pivoting device, which is no longer available; Agitator flange centered in the upper bottom
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
