Sku B0039

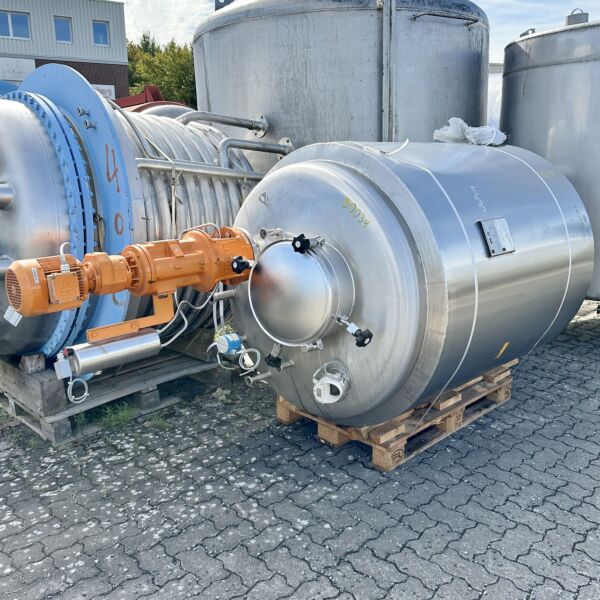

1850 liter heat-/coolable pressure tank, Ais304 with Stelzer propeller agitator
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Apparatebau Nordhausen
location
Bremen
condition
used
Vessel
volume
1.850 liter
vacuum
1,0 bar
max. excess pressure
4,0 bar
max. allowable working temperature
100 °C
bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
100,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Technical Characteristics
diameter inside
1.178 mm
cylindrical height
1.500 mm
total height
3.350 mm
Equipment
Technical documentation
drawing,German Technical Supervisory Association TÜV documents
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
clamp
outlet
40 mm
notice
dents at the insulation jacket
Material Composition
material in contact w/ medium
AISI304 1.4301
Agitator
manufacturer stirrer
Stelzer
power
1.5 KW
output speed
300 rpm
agitator
crossarm stirrer
stirrer seal
mechanical seal with thermosyphon
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
