8807

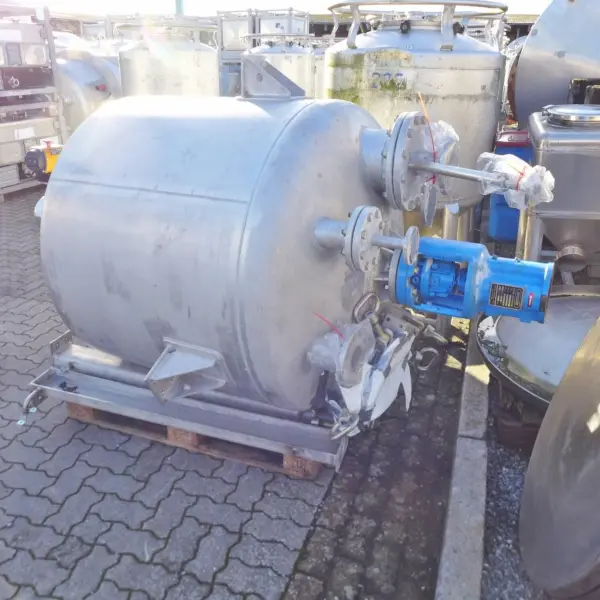

1356 liter pressure vessel with blade stirrer, AISI316
€6,300.00
incl. VAT
€7,497.00
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
HANAG
location
Bremen
condition
used
Vessel
volume
1.356 liter
vacuum
1,0 bar
max. excess pressure
2,0 bar
max. allowable working temperature
200 °C
lower bottom
cone shaped bottom
upper bottom
torispherical bottom
construction
standing
stand type
legs
quantity legs
3 Piece
Technical Characteristics
diameter inside
1.200 mm
cylindrical height
900 mm
total height
3.250 mm
Wall thickness lower bottom
5 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
8.8 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 400)
nameplate
outlet
flange DN80
notice
manhole cover is missing
remarks
3 feet, Aisi 304 screwed to support brackets, Aisi 304; 1 longitudinal sight glass each in the cylinder and in the lower bottom; on the outlet there is a fitting with a pipe diameter of approx. 38 mm inside
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4435
Agitator
manufacturer stirrer
Stelzer
power
2.5 KW
output speed
26 - 156 rpm
agitator
blade agitator
voltage
230/400 Volt
agitator positioning
centrically in the upper bottom
agitator features
Output adjustable by hand wheel
