Sku B0066

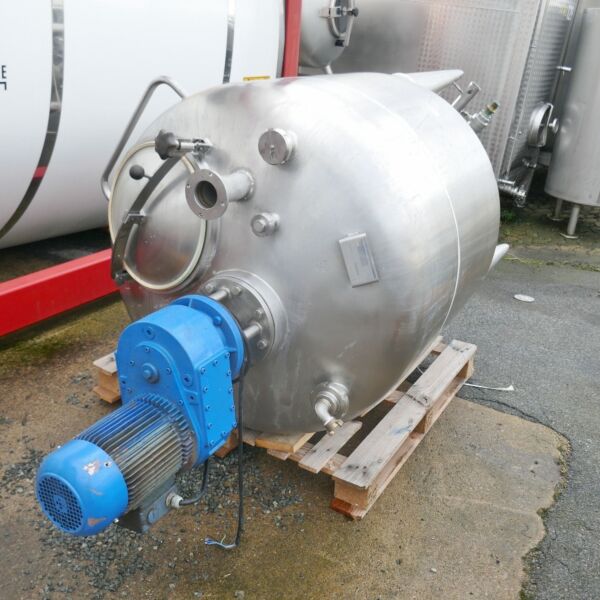

1080 liter stainless steel 316 agitator tank with beam agitator
€4,500.00 €5,355.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Diessel
location
Bremen
condition
used
Vessel
volume
1.080 liter
vacuum
1,0 bar
max. excess pressure
0.5 bar
max. allowable working temperature
100 °C
lower bottom
conical bottom
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
Technical Characteristics
diameter inside
1.090 mm
cylindrical height
800 mm
total height
2.700 mm
Equipment
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
ball valve, spray ball
outlet
25 mm
remarks
Cone height approx. 520 mm; spout with flange-mounted reduction fitting (reduced to 25 mm; end piece probably made of brass)
latest application
Chemistry
Material Composition
material in contact w/ medium
AISI316 / 317LMN 1.4439
material legs
stainless steel
Agitator
manufacturer stirrer
PRG
power
0.75 / 1.1 KW
output speed
19 / 38.5 rpm
agitator
blade agitator
voltage
380 Volt
agitator positioning
eccentrically in the upper bottom
