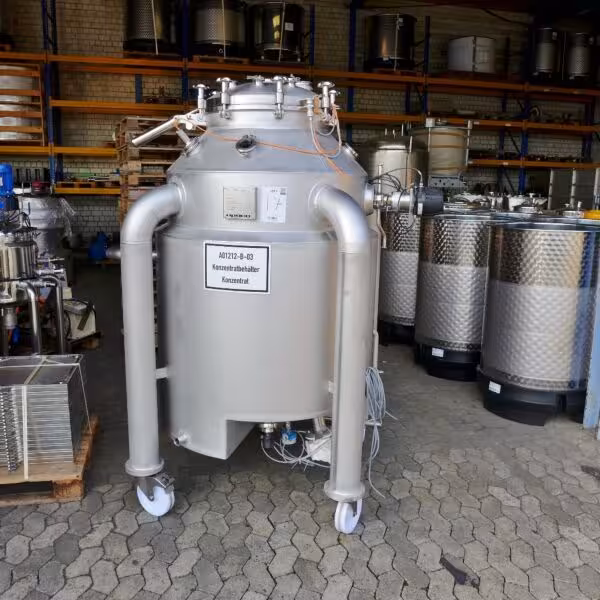

1000 liter heat-/coolable pressure vessel, Aisi 316 with magnetic agitator
€29,500.00
incl. VAT
€35,105.00
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
apaco
location
Bremen
condition
used
Vessel
volume
1.000 liter
vacuum
1,0 bar
max. excess pressure
3,0 bar
max. allowable working temperature
135 °C
construction
standing
stand type
moveable on wheels
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
5,0 liter
max. allowable working overpressure (dj)
6.0 bar
max. allowable working temperature (dj)
135 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.000 mm
diameter outside
1.120 mm
cylindrical height
1.000 mm
total height
2.100 mm
Wall thickness lower bottom
4 mm
wall thickness cylinder
5 mm
wall thickness of upper bottom
5 mm
year of construction
2019
Equipment
Technical documentation
drawing,various documents ,certificate of inspection,CE label and declaration of conformity,operation manual
manhole
in the upper bottom (Ø 600)
nameplate
outlet
31 mm
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 316 (V4A) 1.4404
material legs
stainless steel
Agitator
output speed
711 rpm
agitator
magnetic mixer
voltage
400 Volt
EX-proof
motor is ex-proof according to the nameplate (due to the new ATEX-regulations the application in explosive areas is not permitted without modification/retrofitting)
agitator positioning
lower bottom
