Sku B0007

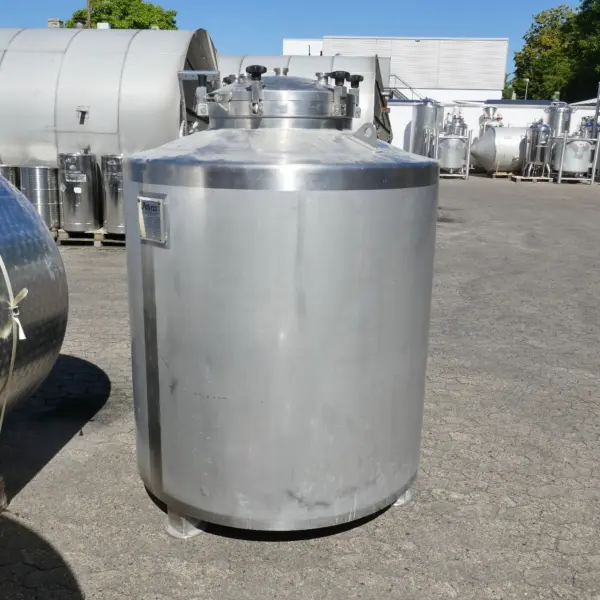

1000 liter heat-/coolable pharmaceutical pressure vessel, Aisi 316 with insulation
€5,000.00 €5,950.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Jorns
location
Bremen
condition
used
Vessel
volume
1.000 liter
max. excess pressure
2,0 bar
max. allowable working temperature
120 °C
construction
standing
stand type
legs
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
97,0 liter
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
134 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.180 mm
diameter outside
1.360 mm
total height
1.950 mm
Equipment
manhole
in the upper bottom (Ø 600)
nameplate
technical equipment
crane eyes
outlet
available
remarks
1 screw connection of the manhole cover damaged
latest application
Pharmacy
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
