Sku B0022

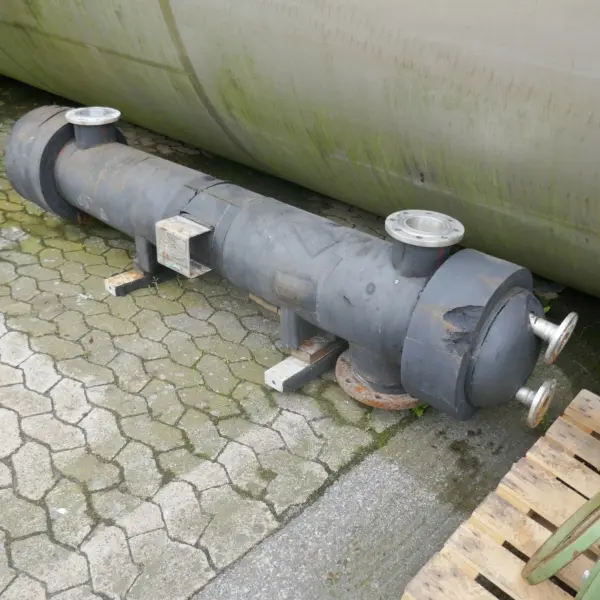

Insulated 6.3 m² heat exchanger made of stainless steel 316
Price on request
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Heinrich Nowak
location
Bremen
condition
used
Heat exchangers
Technical documentation
drawing,certificate of inspection
exchange surface
6.3 m²
latest application
Pharmaceutical Chemistry
nameplate
insulation
available
Insulation material
Armaflex
Shell Space
volume double jacket
73 liter
material of jacket
AISI316 (V4A) 1.4571
max. allowable working overpressure double jacket
6,0 bar
max. allowable working underpressure double jacket
1,0 bar
max. allowable working temperature (dj)
200 °C
Tube Space
volume pipe area
34 liter
material pipes
AISI316 (V4A) 1.4571
number of pipes
40
pipe length
2000 mm
diameter pipes
25 mm
max. allowable working temperature in tube side
200 °C
max. allowable working overpressure in tube side
6,0 bar
max. allowable working underpressure in tube side
1,0 bar
Technical Characteristics
diameter outside
340 mm
diameter inside
2.670 mm
total length
2.460 mm
