Sku 10106

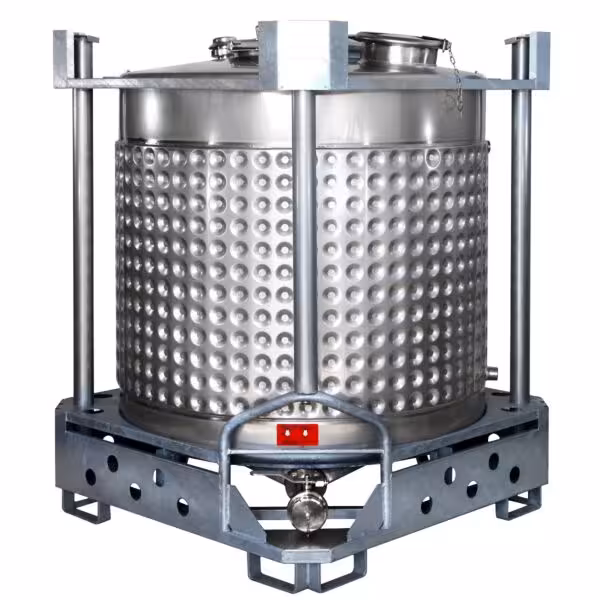

Brand new 1000 liter heat-/coolable stainless steel container, AISI 304 (with additional handhole)

€3,890.00 €4,629.10  incl. VAT
Price per piece, excl. VAT
DELIVERY TIME:
ON REQUEST

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
volume
1.023 liter
max. allowable working temperature
80 °C
construction
container
stand type
cage
double jacket
double jacket
available
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
thermoplate
Technical Characteristics
diameter inside
1.080 mm
cylindrical height
1.000 mm
total height
1.500 mm
year of construction
2013
Equipment
Technical documentation
drawing
manhole
in the upper bottom, handhole
nameplate
technical equipment
ventilation, ball valve
Material Composition
surface outside
bright rolled IIIc
surface inside
high-gloss
material in contact w/ medium
AISI304 1.4301
material temperatur control system
stainless steel
material legs
galvanized steel



2 pcs. brand new, jacketed Stackable Containers
with handhole

- material:  V2A=AISI304

- type:

PL-R 1000



- containers are in a transport- and stackable
   cage of mild steel, galv.

- containers are unused

- year of construction:



2013



- volume:



1.023

 ltrs.

- inner diameter:

appr.  1.080

 mm

- cyl. height:

appr.  1.000

 mm

- ttl. height:

appr.  1.500

 mm

cage dimensions:

- basic dimensions:

1.120x1.120

 mm

- height:



1.485

 mm

- container with lift-truck and forklift access from
   4 sides

- double jacket (thermoplate) of st.st. (V2A) for
   heating/cooling around the biggest cyl. part
   (acc. to the manufacturer the double jacket can
   be operated up to a max. operating pressure of
   2,5 bar (water) resp. max. 0,5 bar (steam).

- welding seams are executed by automatic welding
  process, afterwards pickled and passivated on the
   inner and outer side
- cylinder with only one longitudinal seam
- upper bottom incl. manhole collar/hoop compressed
   from one piece
- centrically in the upper bottom 1 manhole DN 400,
   with hinged cover, hinge, handle and rapid lever
- 1 double-acting safety-valve with stainless cap as well
   as one handhole DN 200 with screwed hand guard/
   finger protection eccentrically in the upper bottom
- lower bottom conically compressed from one piece
   with outlet bead and stainless steel ball-valve 2”,
   male thread and st.st. cap

PRICE / piece:

2.470,--



additional price for outlet cock DN 50 DIN 11851:

PRICE / piece:

20,--



Prices: ex stock Bremen, packing excl., tax excl.
