Sku 16228

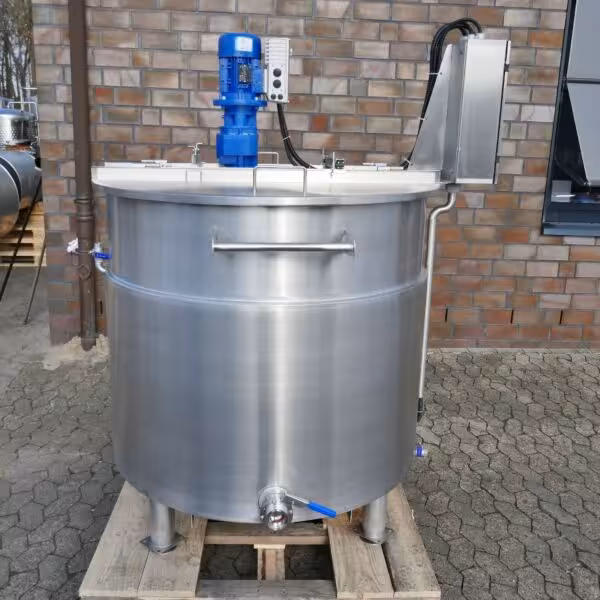

Brand new 1000 liter electrically heated agitator tank, Aisi 316 with blades agitator

€18,900.00 €22,491.00  incl. VAT
Price per piece, excl. VAT
2 pieces on stock

Select „share“ below, in order to generate an email template with the link to this corresponding product.

Share this product with someone

General Information
location
Bremen
condition
brand new
Vessel
Manufacturer
Behälter KG Bremen
volume
1.000 liter
max. allowable working temperature
90 °C
lower bottom
flat bottom with slope
upper bottom
agitator traverse with hinged cover
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
insulation thickness
25 mm
Technical Characteristics
diameter inside
1.150 mm
diameter outside
1.250 mm
cylindrical height
1.000 mm
total height
1.900 mm
Wall thickness lower bottom
2 mm
wall thickness cylinder
2 mm
Equipment
Technical documentation
drawing,CE label and declaration of conformity,operation manual
nameplate
technical equipment
butterfly valve, frequency converter
outlet
DN50 DIN 11851
remarks
Double jacket must be operated without pressure; 2 electric heaters (6 kW) for heating up the heating medium in the double jacket; Attention: The tank is delivered without heating medium (glycerine or thermal oil), which must be filled in on site before commissioning ; control cabinet for the electric heaters available (temperature of the double jacket can be regulated via the control cabinet); 2 ball valves for the heating jacket are included in the scope of delivery; Contrary to what is stated in the drawing, the tank is not polished on the inside
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel
First Agitator
power
0.75 KW
output speed
0 - 85 rpm
agitator
blade agitator
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
