Sku B0054

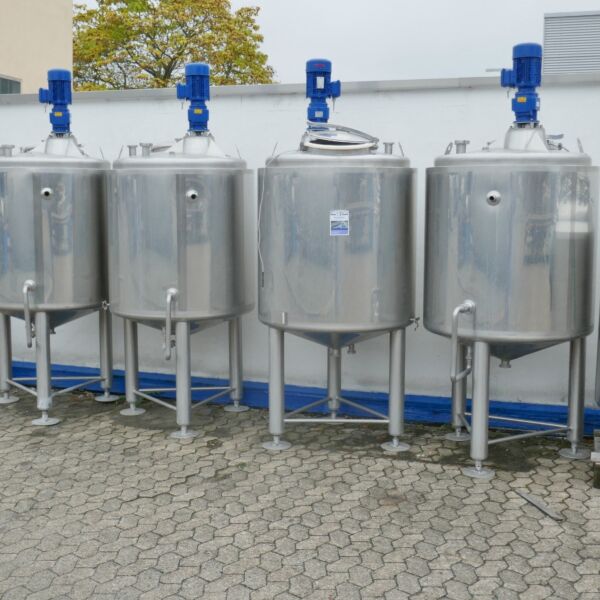

810 liter heatable/coolable, insulated agitator tank made of stainless steel 304 with beam agitator
€4,500.00 €5,355.00 incl. VAT
Price per piece, excl. VAT
4 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Behälter KG Bremen
location
Bremen
Vessel
volume
810 liter
max. allowable working temperature
80 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
13,0 liter
max. allowable working overpressure (dj)
2.0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
thermoplate
temperature control bottom (dj)
thermoplate
Insulation
insulation
available
insulating jacket
welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
980 mm
diameter outside
1.080 mm
cylindrical height
1.000 mm
total height
2.620 mm
year of construction
2014
Equipment
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
DN50 DIN 11851
remarks
Closure of the manhole cover has been modified from the previous one; the top of 1 tank is slightly dented
latest application
Food
Material Composition
material in contact w/ medium
AISI304 1.4301
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
1.1 KW
output speed
98 rpm
agitator
blade agitator
voltage
230/400 Volt
agitator positioning
eccentrically in the upper bottom
