Sku 9790

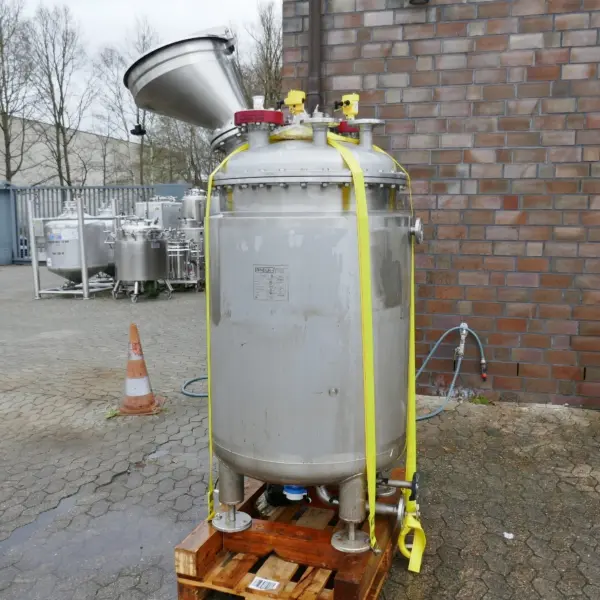

665 liter heat-/coolable tank, Aisi 316 with magnetic agitator
€6,500.00 €7,735.00 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
Binder
location
Bremen
condition
used
Vessel
volume
665 liter
max. allowable working temperature
80 °C
upper bottom
upper bottom removable / hinged
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
48,0 liter
max. allowable working overpressure (dj)
4.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
80 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
Insulation material
stone wool
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
802 mm
diameter outside
940 mm
cylindrical height
1.100 mm
total height
2.300 mm
Wall thickness lower bottom
5 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
3.4 mm
year of construction
2016
Equipment
Technical documentation
drawing,certificate of inspection,CE label and declaration of conformity,operation manual
nameplate
outlet
54 mm
remarks
Sight glass in the upper bottom damaged
latest application
Chemistry (caustic soda)
Material Composition
material in contact w/ medium
AISI316 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
MAVAG AG
power
0.55 KW
output speed
416 rpm
agitator
magnetic mixer
voltage
230/400 Volt
agitator positioning
lower bottom
agitator features
Speed range 50 - 470 rpm (speed controller not available); operating instructions for agitator available
