Sku 9439

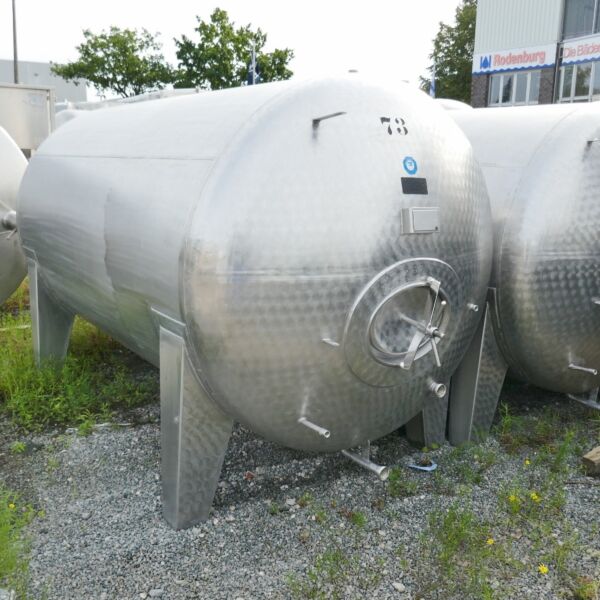

6000 liter horizontal +8 bar pressure tank, Aisi 304
€8,900.00 €10,591.00 incl. VAT
Price per piece, excl. VAT
4 pieces on stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
Documentation
General Information
Manufacturer
W. Ortmann
location
Bremen
condition
used
Vessel
volume
6.000 liter
max. excess pressure
8,0 bar
construction
horizontal
stand type
legs
quantity legs
4 Piece
Technical Characteristics
diameter inside
1.580 mm
cylindrical length
2500 mm
total height
1.900 mm
total length
3.500 mm
wall thickness bottom
5 mm
wall thickness cylinder
5 mm
Equipment
Technical documentation
drawing,certificate of inspection
nameplate
outlet
DN40 DIN 11851
notice
some residues of previous content
remarks
1 oval manhole (approx. 420 x 320 mm) in the front bottom; 1 tank with slight differences in design (e.g., connections in the front bottom; no drawing is available for this tank); Incorrect cylinder length information in the drawing; various loose fittings in the tanks (were not taken into account when specifying the tank dimensions); 1 tank with slightly stronger adhesions inside (see photos)
latest application
Sparkling wine
Material Composition
material in contact w/ medium
AISI321 1.4541
material legs
stainless steel
