8594

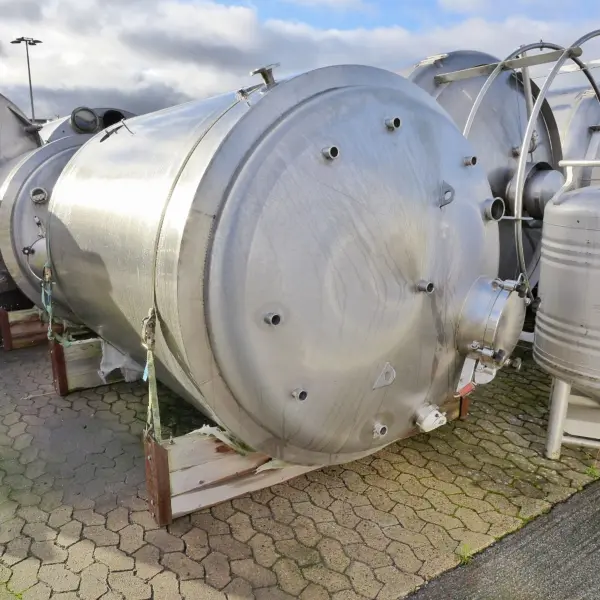

5500 liter heat-/coolable pressure tank, Aisi 316 with propeller agitator
€22,500.00
incl. VAT
€26,775.00
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
Apparatebau Nordhausen
location
Bremen
condition
used
Vessel
volume
5.500 liter
vacuum
1,0 bar
max. excess pressure
2.5 bar
max. allowable working temperature
140 °C
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Volume double jacket
154,0 liter
max. allowable working overpressure (dj)
2.5 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
140 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.680 mm
diameter outside
1.890 mm
total height
3.500 mm
Equipment
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
38 mm
notice
some residues of previous content, pipe end cut flush
remarks
Dents in the insulation jacket possible; The production and documentation drawings are available from the manufacturer and can be purchased separately from there
latest application
Saline solution
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4571
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel
Agitator
manufacturer stirrer
PRG
power
2.2 KW
output speed
429 rpm
agitator
propeller
voltage
230/400 Volt
agitator positioning
lower bottom
