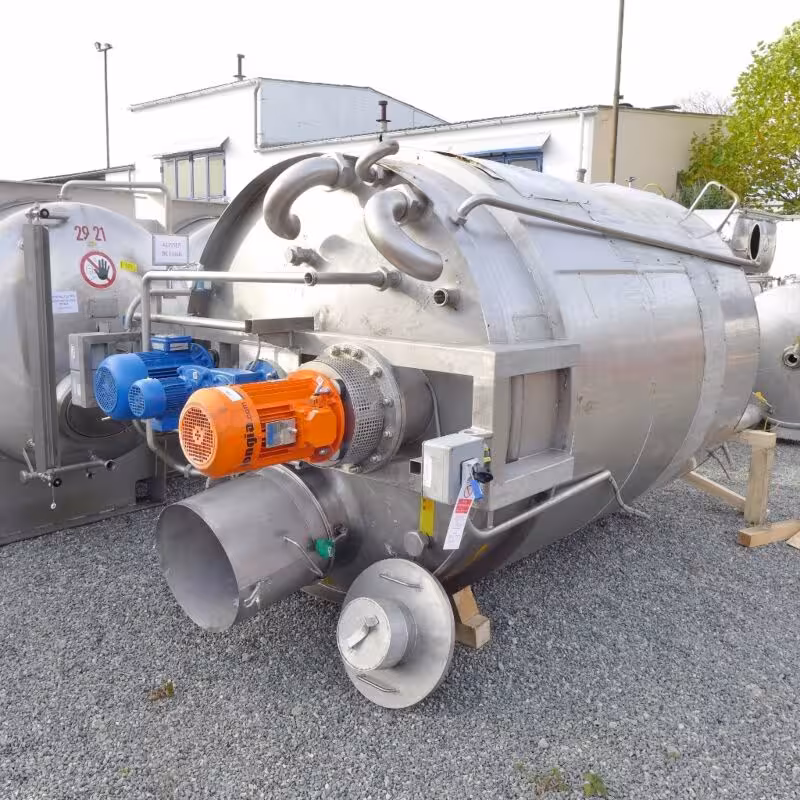

5000 liter insulated agitator tank, Aisi 316 with 3 agitators
€7,950.00
incl. VAT
€9,460.50
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
5.000 liter
construction
standing
stand type
legs
quantity legs
3 Piece
Insulation
insulation
available
insulating jacket
screwed
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.790 mm
diameter outside
1.900 mm
cylindrical height
2.100 mm
total height
4.150 mm
Equipment
manhole
in the upper bottom (Ø 500)
technical equipment
spray ball
outlet
48 mm
remarks
1 dent in the inner tank (overpressure of the no longer functional heating jacket; see photos); insulation jacket with smaller dents and partially detached plates; tank with adhesions inside; Devices for load cells under the feet (3 loose load cells are included in the scope of delivery; these were not taken into account when specifying the total height)
latest application
Food industry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material legs
stainless steel
Agitator
power
0.37 KW
output speed
52 rpm
agitator
blade agitator
voltage
230/400 Volt
stirrer
3 stirrer
agitator positioning
centrically in the upper bottom
agitator features
Propeller 3: agitator data can no longer be read correctly; probably 460 / 920 rpm
Second Agitator
agitator
propeller
agitator positioning
eccentrically in the upper bottom
output speed
450 / 965 rpm
voltage
400 Volt
power
1.1 / 4.4 KW
