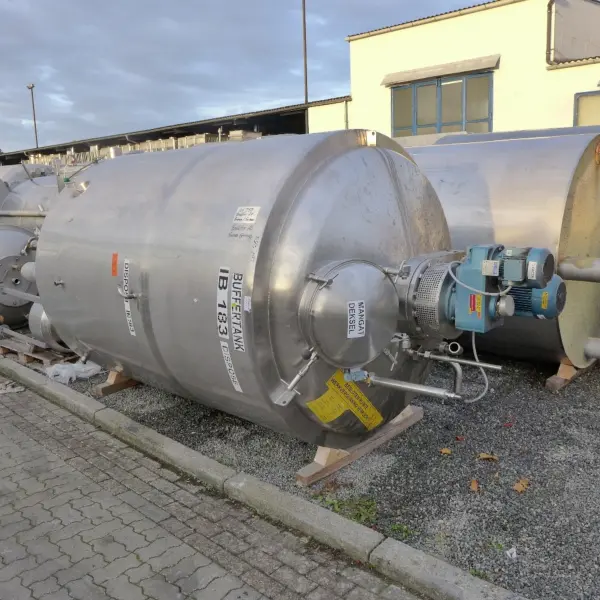

5000 liter heat-/coolable agitator tank, Aisi 316 with 2 agitators
€16,500.00
incl. VAT
€19,635.00
Price per piece, excl. VAT
1 on Stock
General Information
location
Bremen
condition
used
Vessel
volume
5.000 liter
max. allowable working temperature
100 °C
lower bottom
flat bottom with slope
construction
standing
stand type
legs height adjustable
quantity legs
4 Piece
double jacket
double jacket
available
Volume double jacket
100,0 liter
max. allowable working overpressure (dj)
5.0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
half-coil
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.700 mm
diameter outside
1.900 mm
cylindrical height
2.250 mm
total height
4.050 mm
Equipment
manhole
in the upper bottom (Ø 500)
nameplate
technical equipment
spray ball, crane eyes
outlet
48 mm
notice
some residues of previous content
remarks
Smaller dents in the insulation jacket
latest application
Food industry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
material legs
stainless steel
Agitator
agitator
anchor agitator
voltage
230/400 Volt
agitator positioning
centrically in the upper bottom
Second Agitator
agitator
propeller
agitator positioning
eccentrically in the upper bottom
output speed
460 rpm
voltage
380 Volt
power
0,75 KW
