8623

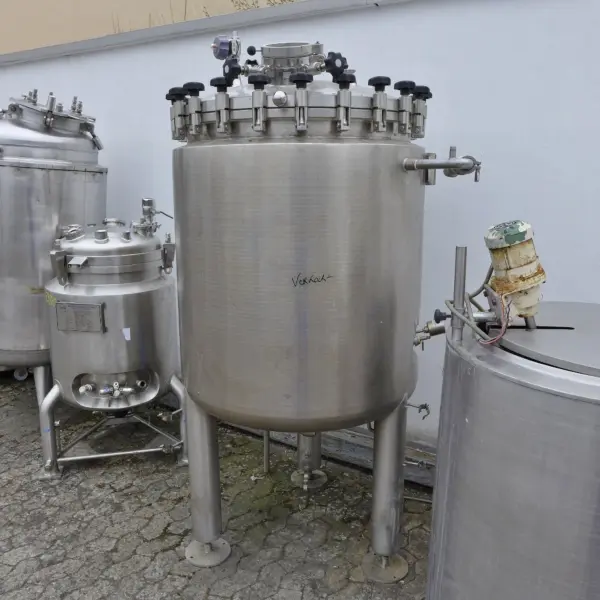

500 liter heat-/coolable tank, Aisi 316 with magnetic agitator
€6,750.00
incl. VAT
€8,032.50
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
Bolz
location
Bremen
condition
used
Vessel
volume
500 liter
upper bottom
upper bottom removable / hinged
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
Temperature control cylinder (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter outside
1.000 mm
total height
2.300 mm
Equipment
nameplate
technical equipment
spray ball
outlet
42 mm
notice
pipe end cut flush
remarks
An internal double jacket was subsequently welded into the tank by the previous operator, which reduces the volume specified on the type plate to approx. 500 liters (see photos); Unfortunately, we do not know to what extent the pressure and temperature information given on the type plate is still valid; total inner diameter of the tank approx. 900 mm, in the area of the inner double jacket approx. 760 mm; 1 hand hole diameter 150 mm in the upper bottom; Outlet fitting no longer available
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 316 (V4A) 1.4404
material legs
stainless steel
Agitator
output speed
50 - 480 rpm
agitator
magnetic mixer
voltage
230/400 Volt
agitator positioning
lower bottom
agitator features
Power probably 0.75 kW; Speed controller not available (speed was probably formerly controlled by an external frequency converter); Magnetic stirrer shaft broken off (see photos)
