Italian Sku 8090

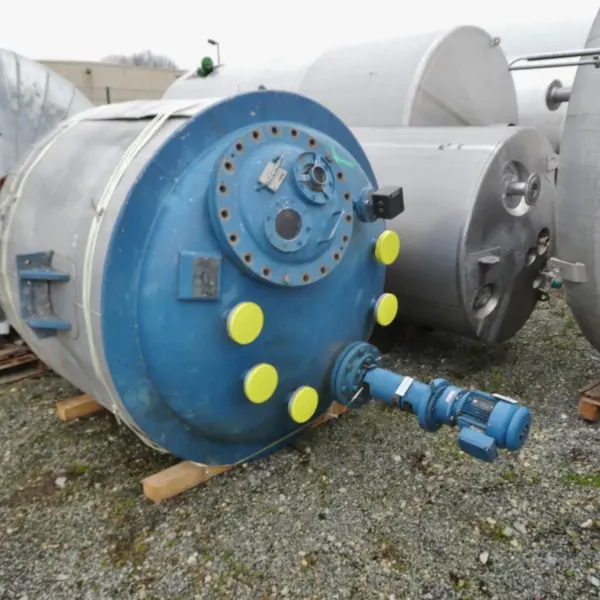

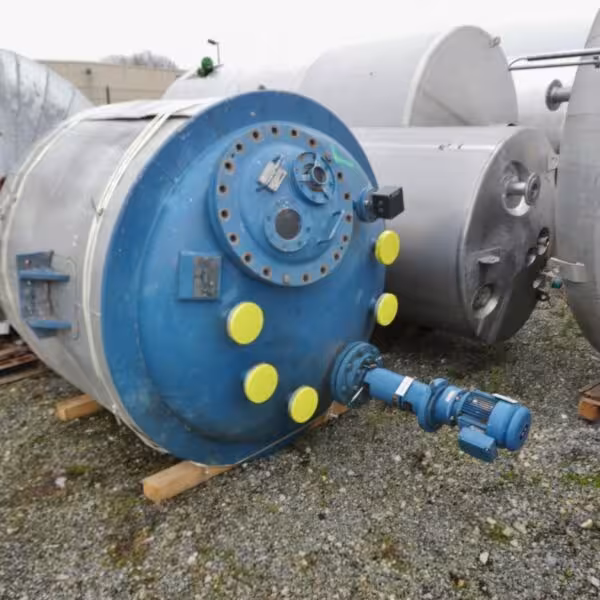

3532 liter heat-/coolable pressure tank, Aisi 316
€12,950.00
€15,410.50 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Römheld & Moelle
location
Bremen
condition
used
Vessel
volume
3.532 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
100 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
103,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working temperature (dj)
100 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.590 mm
diameter outside
1.800 mm
total height
3.300 mm
Equipment
manhole
in the upper bottom (Ø 500)
nameplate
outlet
available
notice
bump at the insulation jacket, manhole cover plated
remarks
3 support brackets made of Fe; half-coil around the lower cylinder area; 1 heating connection probably slightly bent
latest application
Pharmaceutical Chemistry
Material Composition
material in contact w/ medium
AISI316 1.4429
material double jacket
AISI304 (V2A) 1.4301
Agitator
power
1.1 KW
output speed
313 rpm
agitator
propeller
stirrer seal
mechanical seal without thermosyphon
agitator positioning
eccentrically in the upper bottom
agitator features
Comprehensive agitator documentation available
