S13581

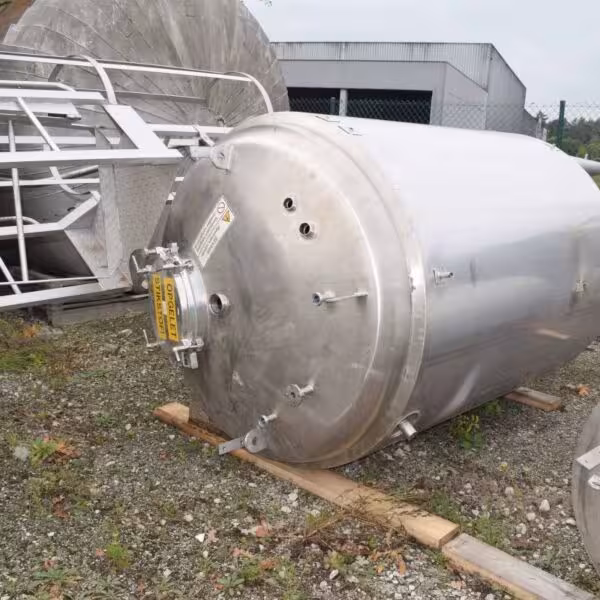

3000 liter jacketed vacuum vessel, AISI304
€11,495.00
incl. VAT
€13,679.05
Price per piece, excl. VAT
1 on Stock
General Information
Hersteller
ETA
location
external warehouse
condition
used
Vessel
volume
3.000 liter
vacuum
1,0 bar
max. excess pressure
0,49 bar
max. allowable working temperature
98 °C
specific weight of the medium
1,0 (to/m³)
bottom
torispherical bottom
construction
standing
stand type
legs height adjustable
quantity legs
3 Piece
double jacket
double jacket
available
max. allowable working overpressure (dj)
3.0 bar
max. allowable working temperature (dj)
98 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Insulation
insulation
available
insulating jacket
welded
Insulation material
stone wool
insulation thickness
50 mm
Technical Characteristics
diameter inside
1.500 mm
diameter outside
1.600 mm
cylindrical height
1.900 mm
total height
3.600 mm
Wall thickness lower bottom
6 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
6 mm
Equipment
outlet
32 mm
remarks
Double jacket has not been tested (no warranty)
Material Composition
material in contact w/ medium
AISI304 (V2A) 1.4301
material legs
stainless steel
