Sku 8088

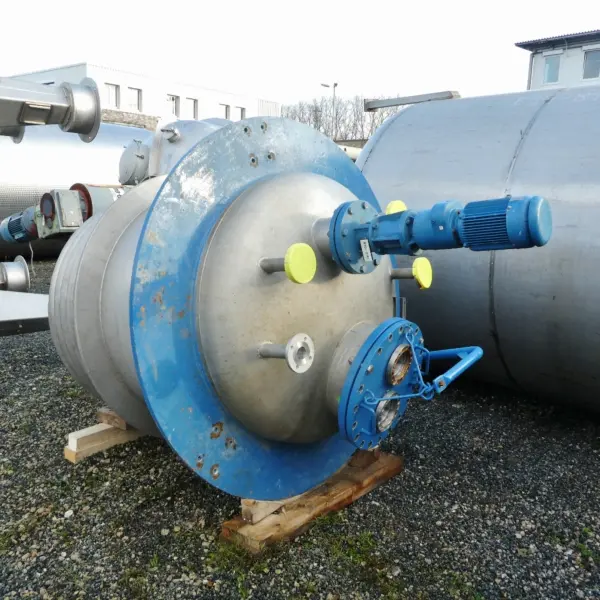

2750 liter heat-/coolable pressure tank, Aisi 316
€12,250.00
€14,577.50 incl. VAT
Price per piece, excl. VAT
1 on Stock
Select „share“ below, in order to generate an email template with the link to this corresponding product.
Share this product with someone
General Information
Manufacturer
Kleiser und Lösch
location
Bremen
condition
used
Vessel
volume
2.750 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
ring
double jacket
double jacket
available
Volume double jacket
62,0 liter
max. allowable working overpressure (dj)
16.0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
half-coil
temperature control bottom (dj)
half-coil
Technical Characteristics
diameter inside
1.390 mm
cylindrical height
1.380 mm
total height
3.150 mm
Equipment
manhole
in the upper bottom (Ø 500)
nameplate
outlet
flange DN100
notice
manhole cover plated
remarks
Support ring made of Fe; Manhole gallows bent
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316L 1.4435
material temperatur control system
AISI 304 (V2A) 1.4541
Agitator
power
2.6 KW
output speed
323 rpm
agitator
propeller
voltage
220/380 Volt
EX-proof
motor is ex-proof (compliance with the new ATEX directives must be verified, taking into consideration the local conditions)
agitator positioning
eccentrically in the upper bottom
