8768

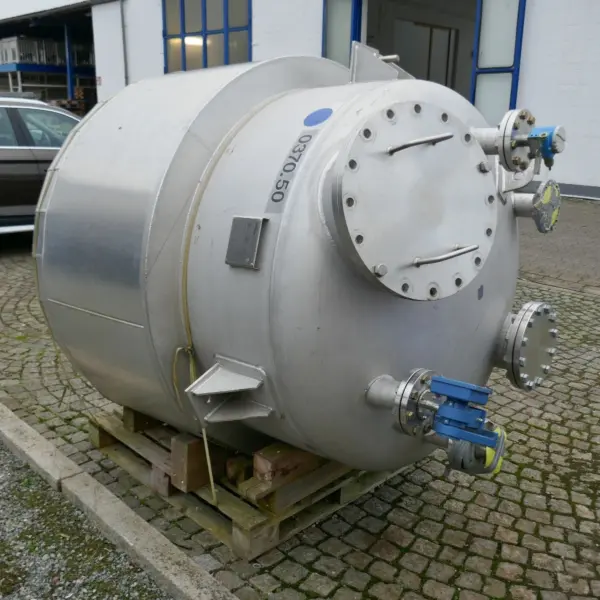

2330 liter heat-/coolable tank, AISI316
€7,400.00
incl. VAT
€8,806.00
Price per piece, excl. VAT
6 pieces on stock
Unterlagen vorhanden
General Information
Hersteller
meilibex A.Meili SA
location
Bremen
condition
used
Vessel
volume
2.330 liter
vacuum
1,0 bar
max. excess pressure
3.2 bar
max. allowable working temperature
200 °C
construction
hanging
stand type
bracket
double jacket
double jacket
available
Volume double jacket
165,0 liter
max. allowable working overpressure (dj)
2.0 bar
max. allowable working underpressure (dj)
1,0 bar
max. allowable working temperature (dj)
200 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
riveted
material insulation jacket
aluminium
Technical Characteristics
diameter inside
1.400 mm
diameter outside
1.650 mm
cylindrical height
1.130 mm
total height
2.150 mm
Wall thickness lower bottom
5.8 mm
wall thickness cylinder
6 mm
wall thickness of upper bottom
7 mm
Equipment
Technical documentation
drawing
manhole
in the upper bottom (Ø 400)
nameplate
technical equipment
crane eyes
outlet
flange DN50
notice
bump at the insulation jacket
remarks
Double jacket, Aisi 304 around the lower cylinder area and the lower bottom; 3 support brackets, stainless steel; Parts of the insulating collar were cut off during disassembly; 1 tank has no insulation (see photos)
latest application
Pharmaceutical chemistry
Material Composition
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material double jacket
AISI304 (V2A) 1.4301
