7768

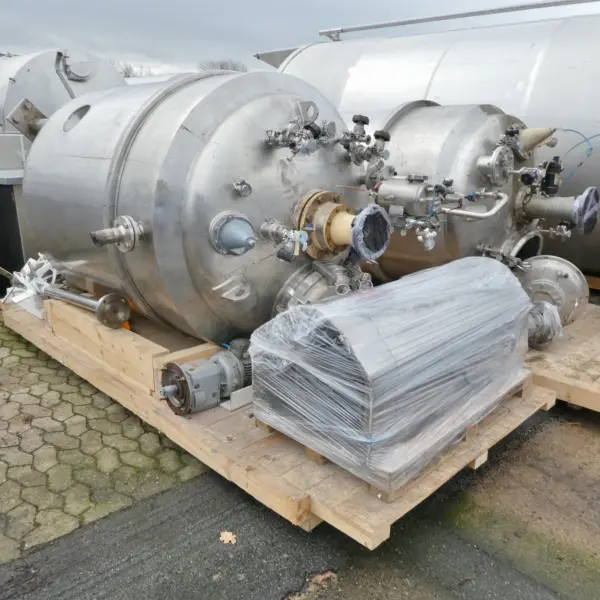

2130 liter heat-/coolable pressure tank, Aisi 316

€8,950.00
price per piece
1 on Stock
General Information
Hersteller
Bachiller
location
Bremen
condition
used
Vessel
volume
2.130 liter
vacuum
1,00 bar
max. excess pressure
3,00 bar
max. allowable working temperature
140 °C
construction
standing
stand type
legs
double jacket
double jacket
available
Volume double jacket
400,0 liter
max. allowable working overpressure (dj)
4.0 bar
max. allowable working temperature (dj)
140 °C
Temperature control cylinder (dj)
double jacket
temperature control bottom (dj)
double jacket
Insulation
insulation
available
insulating jacket
hermetically welded
material insulation jacket
stainless steel
Technical Characteristics
diameter inside
1.260 mm
diameter outside
1.500 mm
total height
4.050 mm
Equipment
manhole
in the upper bottom (Ø 450)
nameplate
technical equipment
spray ball, crane eyes
outlet
available
remarks
Total height including foot pedestals and engine cladding; Double outlet diameter tube inside approx. 35 mm; Insulation jacket with slight damage; 1 crack in the upper double jacket connection
latest application
pharmacy
Material Composition
surface inside
grinded
material in contact w/ medium
AISI316 (V4A) 1.4401 / 1.4404
material temperatur control system
AISI 304 (V2A) 1.4301
material legs
stainless steel
Agitator
power
4 KW
output speed
201 rpm
agitator
cross blade stirrer
voltage
230/400 Volt
agitator positioning
centrically in the upper bottom
